Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Loosen the component indicated. Do not remove it.

Courtesy of VOLVO CARS CORPORATION

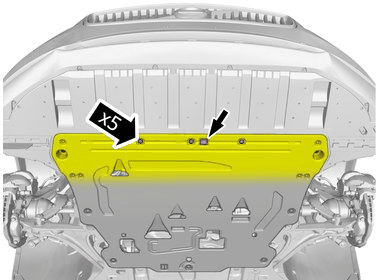

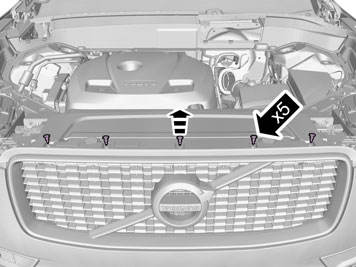

Remove the clips.

Remove the marked part.

Repeat on the other side.

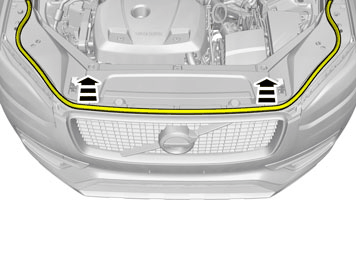

Courtesy of VOLVO CARS CORPORATION

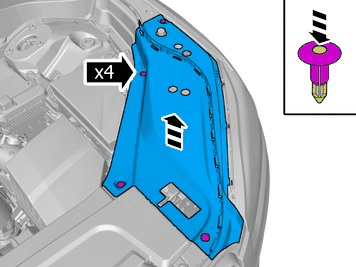

Remove the clips.

Remove relevant side wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

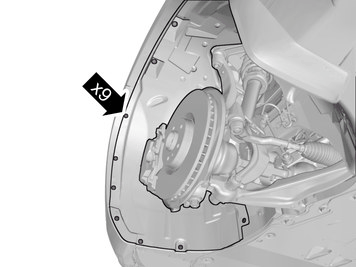

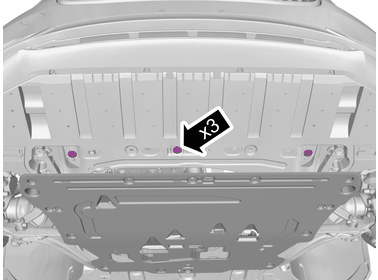

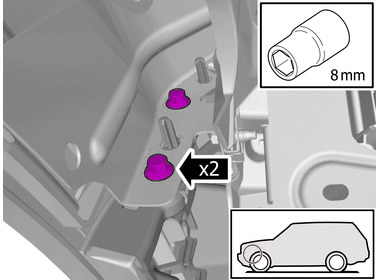

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

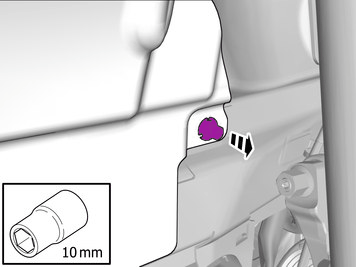

Remove the nut.

Courtesy of VOLVO CARS CORPORATION

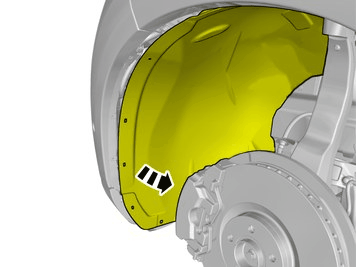

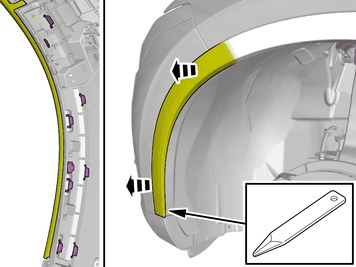

Fold the wing liner aside.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure not to damage painted surfaces.

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

Torque: Bracket to front fender, 6Nm

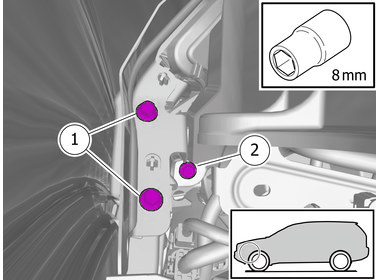

Remove the screws.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Torque: Bracket to front fender, 6Nm

Remove the screws.

ALL VEHICLES

APPLIES TO THE LEFT-HAND SIDE:

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

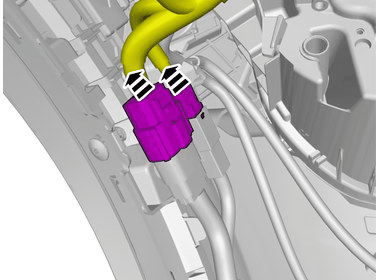

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

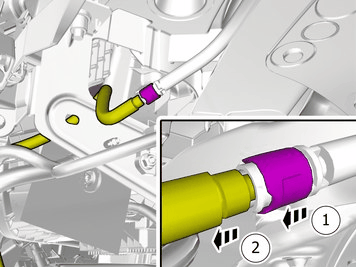

Undo the hose from the connection.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

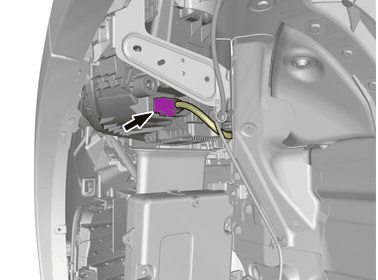

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure not to damage painted surfaces.

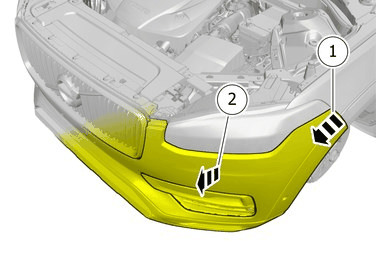

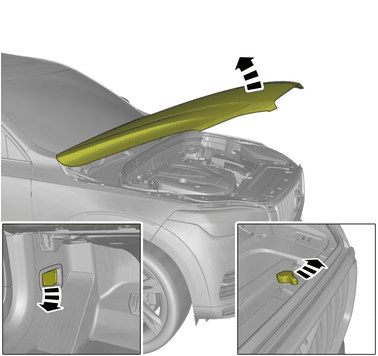

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

Torque: Headlamp assembly, to console, 4.7Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to scratch the headlamp lens.

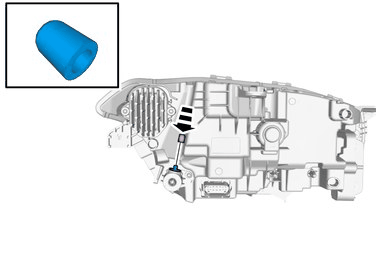

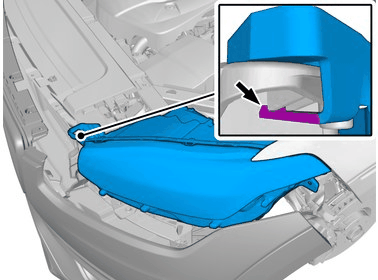

Release the lock.

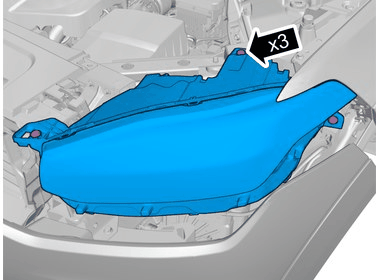

Remove the marked part.

VEHICLES WITH LED HEADLAMPS

TRANSFERRING COMPONENTS

Remove adaptive headlight module AHM, refer to: ADAPTIVE HEADLIGHT MODULE AHM

Remove Indicators/DRL driver, refer to: INDICATORS/DRL DRIVER

Remove the high beam/low beam driver, refer to: HIGH BEAM/LOW BEAM DRIVER

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Install the marked component.

NOTE:

Make sure that correct part numbers are used.

To install, reverse the removal procedure.

Perform headlight, adjustment, refer to: HEADLAMPS, ADJUSTING
