Auxiliary Drive Belt [2016-2020, B4204T27]: Removal

GLL1038755

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Remove engine pad right, refer to: ENGINE PAD RIGHT

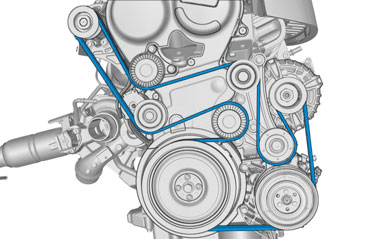

GLL1036271

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

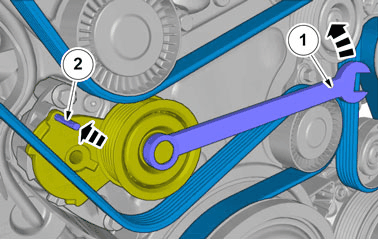

GLL1005338

Courtesy of VOLVO CARS CORPORATION

Use: Pin 3 mm

GLL1036271

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
