Fender [2016-2020]: Removal

Remove the following items:

• Cover bumper front, refer to: COVER BUMPER FRONT
• Sill panel, refer to: SILL PANEL
• Charge Connector Door, refer to: CHARGE CONNECTOR DOOR

Courtesy of VOLVO CARS CORPORATION

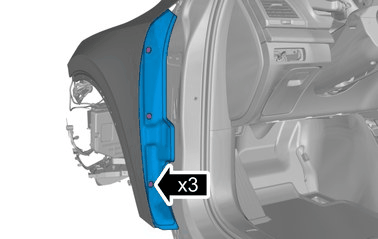

Loosen the screws.

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

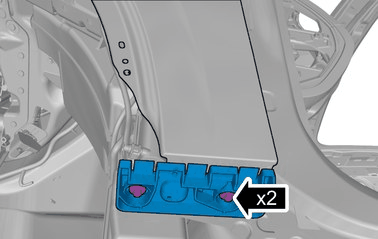

Loosen the clips.

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

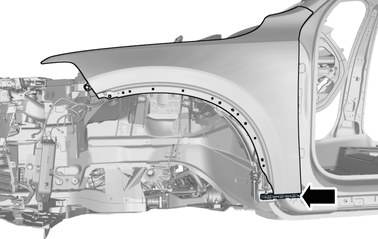

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

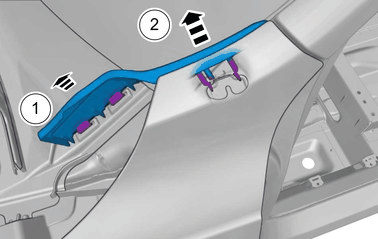

Release the catches.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

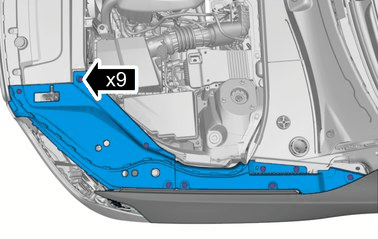

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

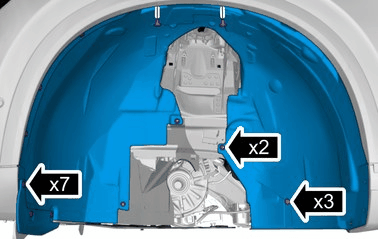

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

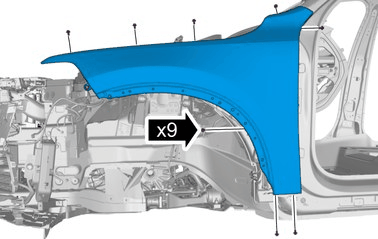

Loosen the screws.

Torque:  M6, 10Nm
