Removal And Installation

REMOVAL

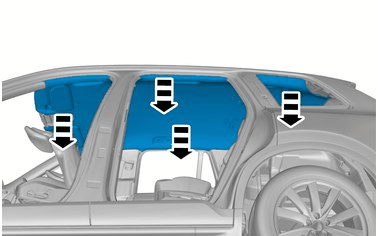

Remove panel A-pillar, refer to: A-PILLAR TRIM PANEL

Remove the B-pillar trim panel, refer to: B-PILLAR TRIM PANEL

Remove the C-pillar trim panel, refer to: C-PILLAR TRIM PANEL

Remove sunshade, refer to: SUN VISOR

Remove rear-view mirror inside, refer to: INNER REAR VIEW MIRROR

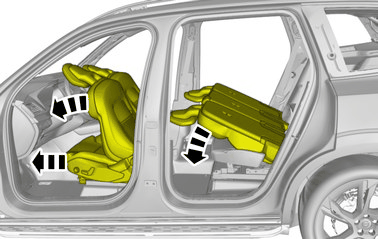

Remove side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

On both sides.

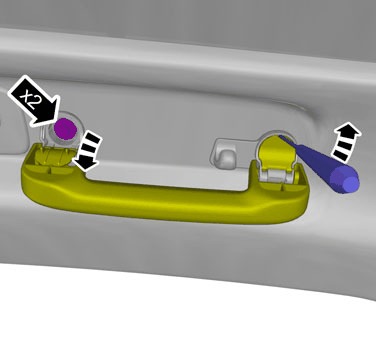

Torque:  entry handle, for bracket, 6Nm

Courtesy of VOLVO CARS CORPORATION

On both sides.

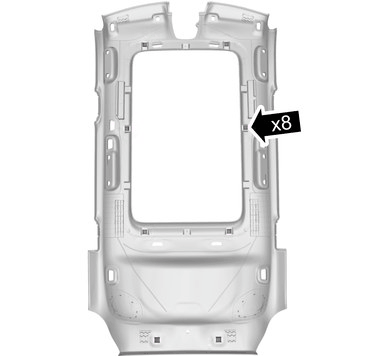

Remove the fasteners.

VEHICLES WITH GLASS ROOF PANEL

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Loosen the screws.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

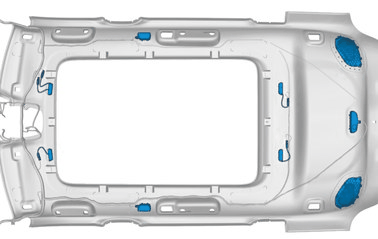

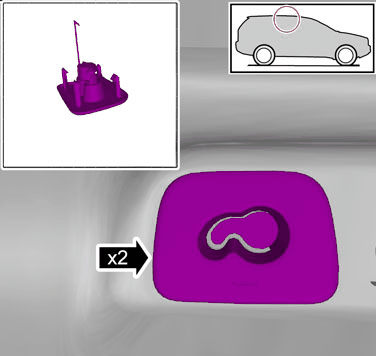

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

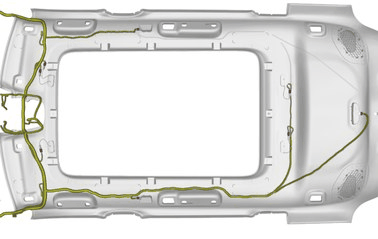

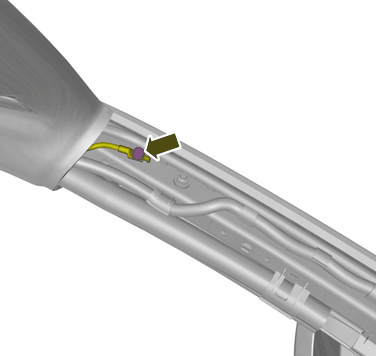

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the fastener.

VEHICLES WITH GLASS ROOF PANEL

Courtesy of VOLVO CARS CORPORATION

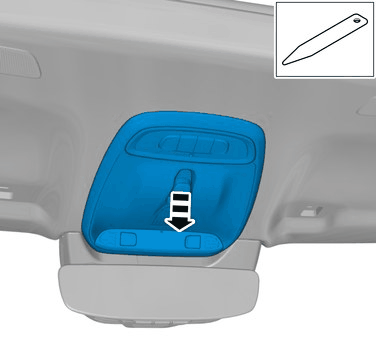

Use:  Interior trim remover

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Use:  Interior trim remover

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

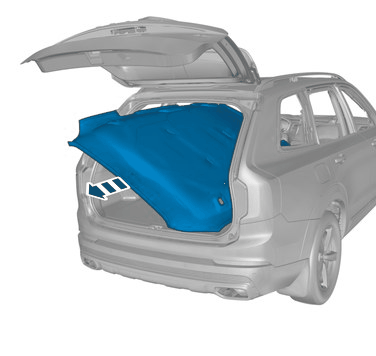

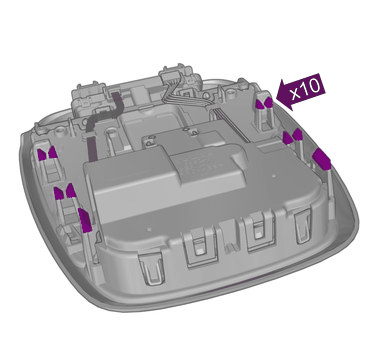

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

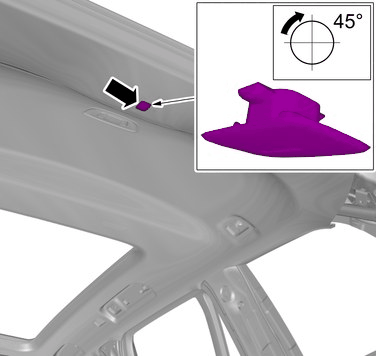

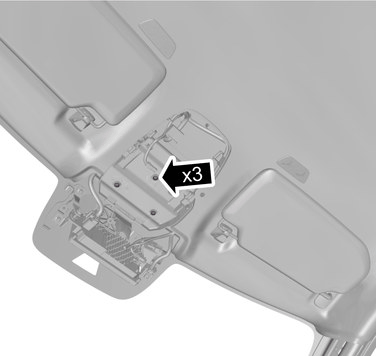

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

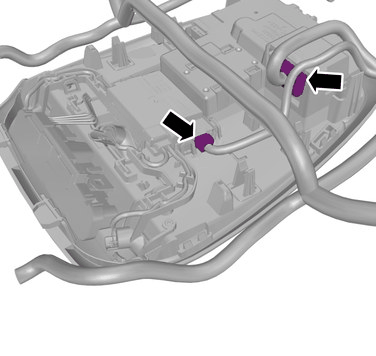

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
