Extra Power Socket 12V, Luggage Compartment [2016-2020]: Removal

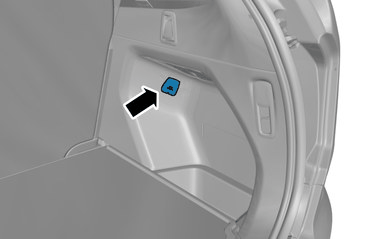

GLL1026439Courtesy of VOLVO CARS CORPORATION
NOTE:

Orientation view

Remove the D-pillar trim panel, refer to: PANEL, D-PILLAR

Remove side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

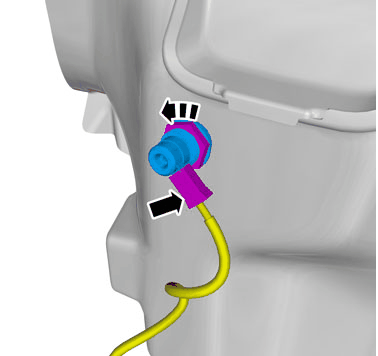

GLL1026869Courtesy of VOLVO CARS CORPORATION

Loosen the nut.

Disconnect the connector.
