TV Antenna Amplifier [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove relevant side panel d-pillar, refer to: PANEL, D-PILLAR

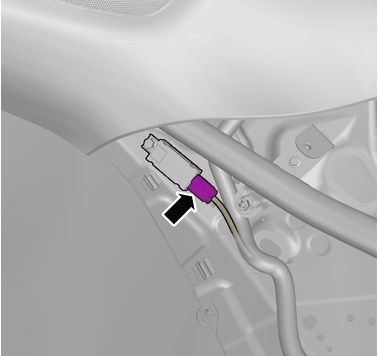

GLL1030844Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

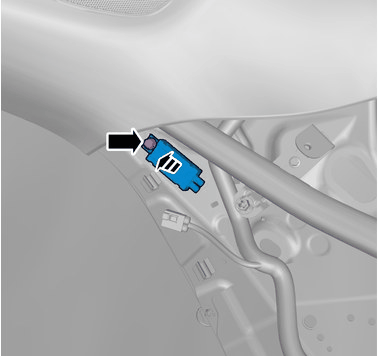

GLL1000812Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M6, 10Nm

Remove the marked part.
