Aux Panel [2018-2019 | 2020, B4204T23; B4204T27; B4204T28; B4204T39]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

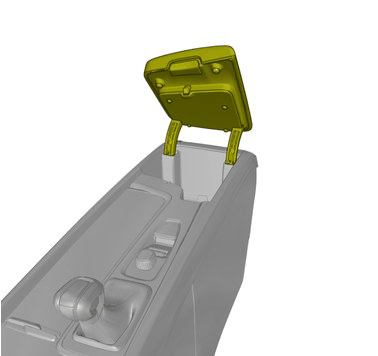

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

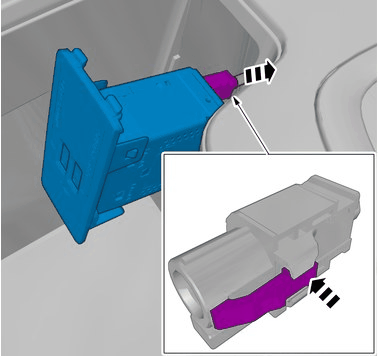

Disconnect the connector.

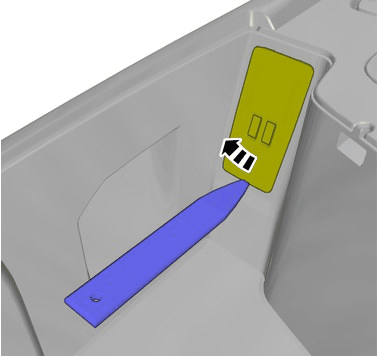

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

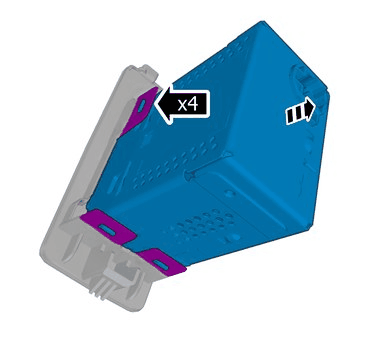

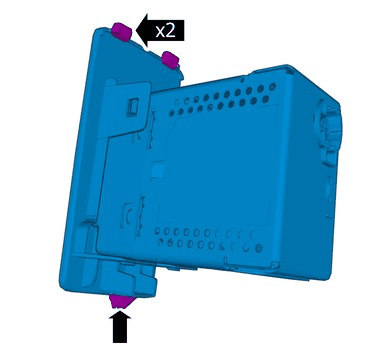

Release the locks.

Remove the marked part.
