Antenna Amplifier, Radio [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

GLL1041571

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

GLL1039665

Courtesy of VOLVO CARS CORPORATION

GLL1014920

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

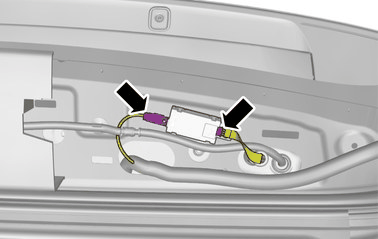

GLL1008859

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

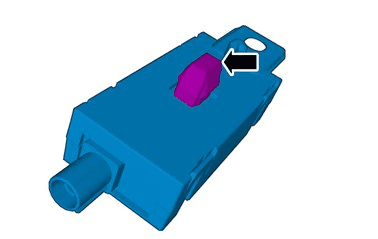

GLL1018854

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

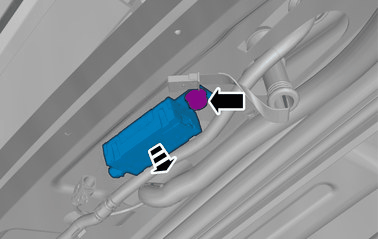

GLL1034961

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Remove the marked part.

Torque: M6, 10Nm

GLL1009261

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Detach left panel c-pillar, refer to: C-PILLAR TRIM PANEL

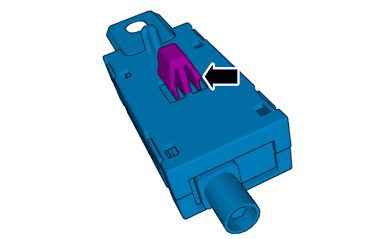

GLL1005820

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

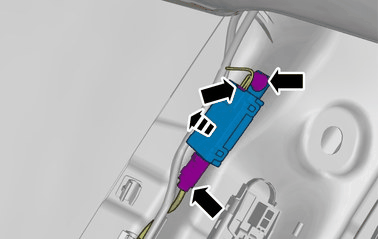

GLL1007856

Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Remove the screw.

Remove the marked part.

Torque: M6, 10Nm
