Supplemental Restraint System Module (SRS) (Excellence) [2016-2020, B4204T28]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

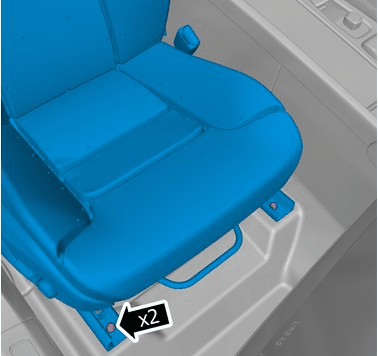

Remove the screws.

On both sides.

Torque: Rear seat, to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

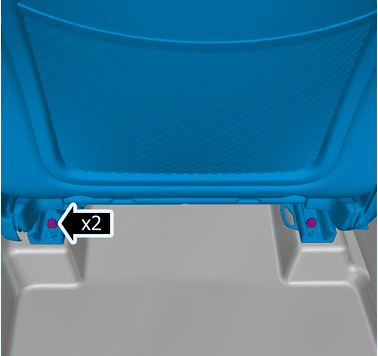

Remove the screws.

On both sides.

Torque: Rear seat, to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

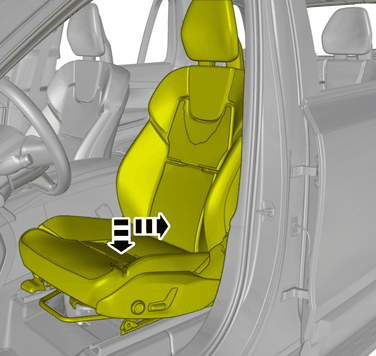

On both sides.

Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

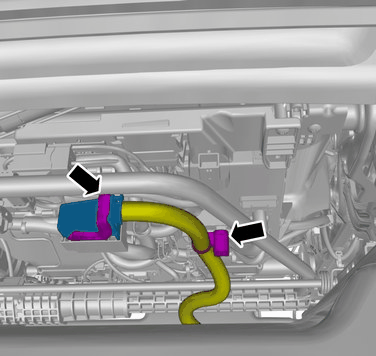

Disconnect the connector.

Remove the fastener.

On both sides.

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

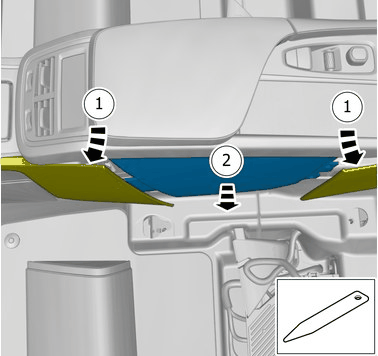

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 981 4071

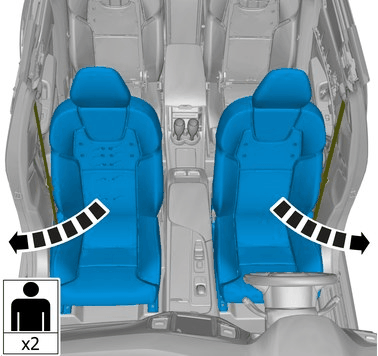

Fold marked part aside.
Remove the marked part.

On both sides.

Courtesy of VOLVO CARS CORPORATION

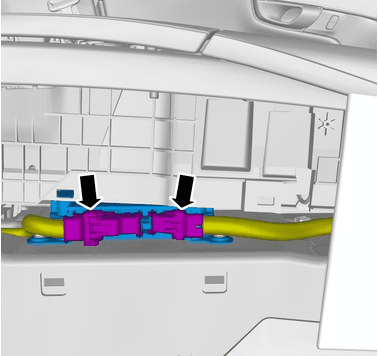

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

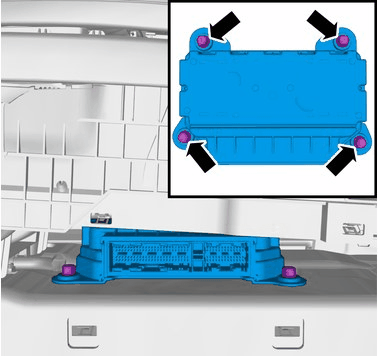

Remove the screws.

On both sides.

Torque: Supplemental Restraint System Module (SRS), to Body, 10Nm
