Rear Door, Repair (2016 - 20)

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

Materials
Designation	Part number
Isopropanol	1161721

REPAIR

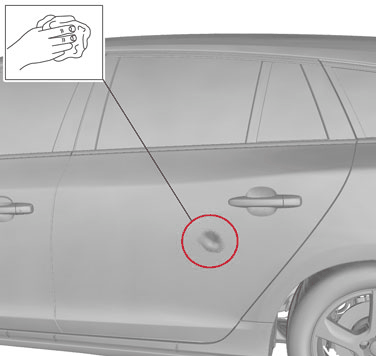

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Use: Isopropanol, 1161721

NOTE:

For large dents, follow instruction for Dent Lifter Tool.

Perform puller for dents, refer to: DENT LIFTER TOOL [2016-2020]

Courtesy of VOLVO CARS CORPORATION

Perform work lighting, refer to: WORK LIGHTING [2016-2020]

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Observe caution when carrying out this step.

NOTE:

Use the clock method when repairing panel damage.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Choose a tool according to how accessible the damage is.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always start at the highest point on the panel surface.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always start at the highest point on the panel surface.

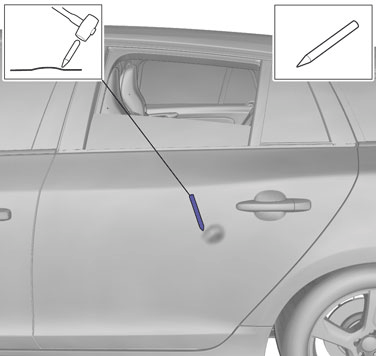

NOTE:

Hit the panel surface lightly several times rather than hitting it hard once.

NOTE:

If the result is not satisfactory, tap the panel damage down and start again.

Courtesy of VOLVO CARS CORPORATION

Use: Isopropanol, 1161721

Perform paint, sanding procedure, refer to: PAINT, SANDING PROCEDURE [2016-2020]

Perform paint, polishing procedure, refer to: PAINT, POLISHING PROCEDURE [2016-2020]

CHECK

Courtesy of VOLVO CARS CORPORATION
