Engine Pad Left [2016, B4204T23; B4204T27 | 2017-2020, B4204T23; B4204T27, TG-81SC; TG-81SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

On both sides.

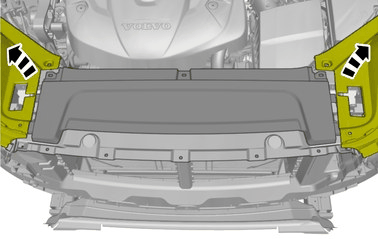

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Release the locks.

Release the catches.

Remove the marked part.

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Remove support battery, refer to: SUPPORT BATTERY

Remove the battery control switch module bcsm, refer to: BATTERY CONTROL SWITCH MODULE BCSM

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

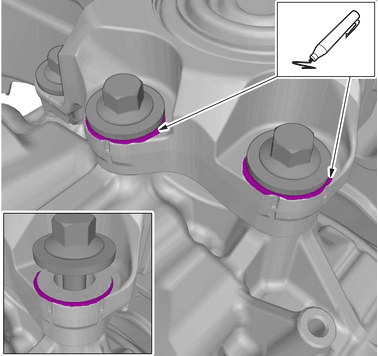

CAUTION:

Note the position of the components before removal.

NOTE:

This step is only necessary if the original component is to be reused.

Use: Marker pen

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of the components before removal.

NOTE:

This step is only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Lower the engine.

Courtesy of VOLVO CARS CORPORATION

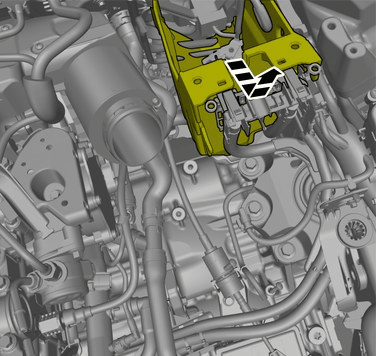

Remove the screws.

Remove the marked part.
