EVAP Valve [2016-2017, B4204T23; B4204T27 | 2016-2017, B4204T28]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|

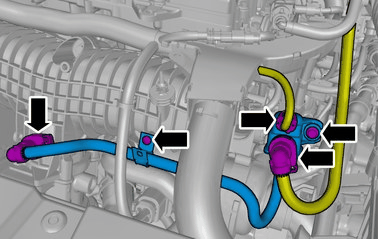

Loosen the screws.
Release the locks.
Undo the hoses from the connections.
Release the connector's catch.
Disconnect the connector.
Torque:
M6, 10Nm
