Evaporation System Emissions, Leak Detection [2016-2020, B4204T28]: Preparation

WARNING:

Make sure that the fuel tank is no more than 3/4 full.

Remove the right rear wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Remove the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

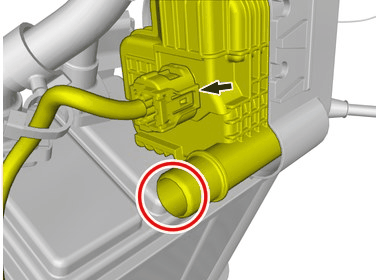

CAUTION:

Make sure that the connector is connected.

Make sure that openings are sealed

Courtesy of VOLVO CARS CORPORATION

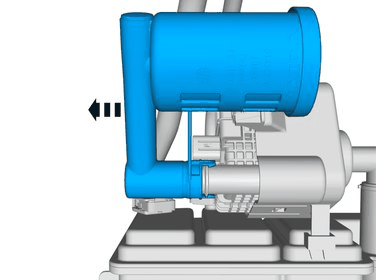

Remove the marked detail/details.
