Front SUBFRAME, Service Position [2016-2019, B4204T28 | 2020, B4204T28; B4204T39, TG-81SD]: Installation

To install, reverse the removal procedure.

Courtesy of VOLVO CARS CORPORATION

NOTE:

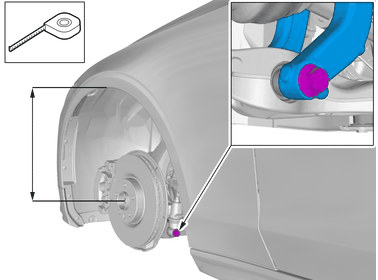

Only tighten the nuts and bolts when the suspension is in the normal drive position.

Torque:Shock Absorber Fork to Front Lower Control Arm,

See information about normal position, refer to: NORMAL POSITION

Courtesy of VOLVO CARS CORPORATION

NOTE:

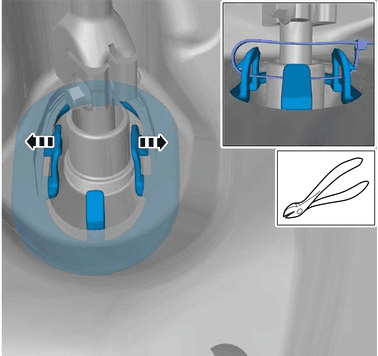

Make sure that the seal is correctly located.

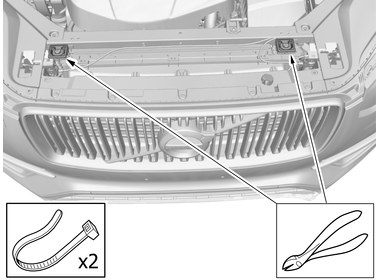

Remove the cable tie(s).

Courtesy of VOLVO CARS CORPORATION

Remove the cable tie(s).
