Vehicle Computational Unit 1 (VCU1) [2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

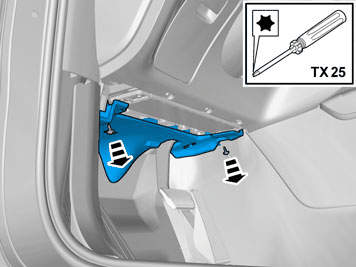

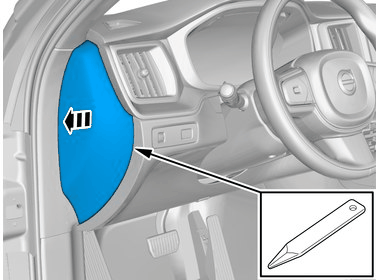

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

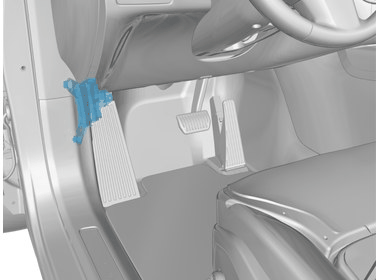

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

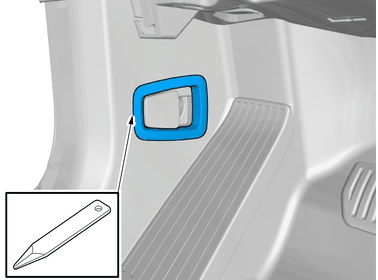

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

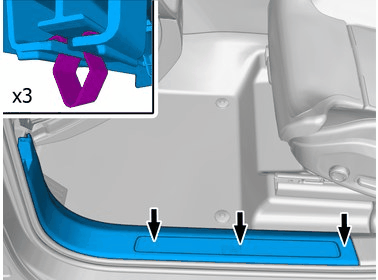

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

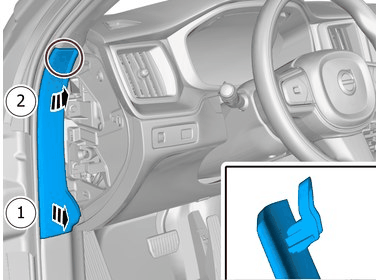

Remove the screws.

Detach the panel.

Courtesy of VOLVO CARS CORPORATION

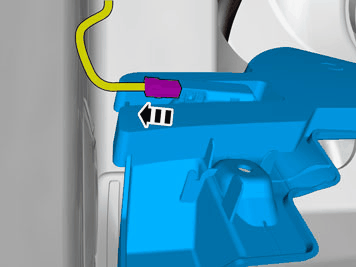

Disconnect the connector.

Remove the panel.

Courtesy of VOLVO CARS CORPORATION

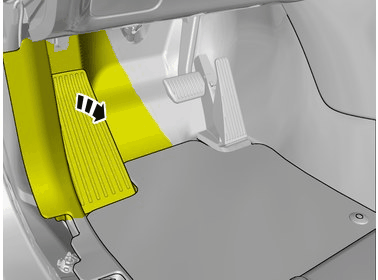

Fold the carpet aside.

Courtesy of VOLVO CARS CORPORATION

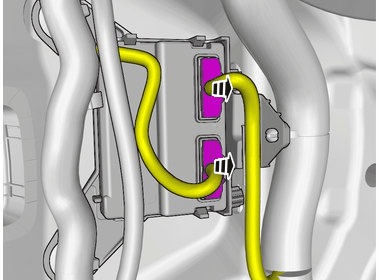

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

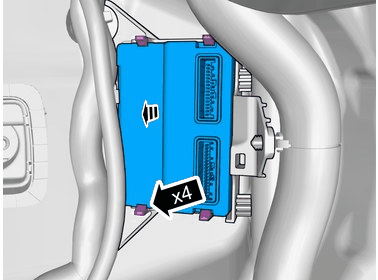

Release the catches.

Remove the marked part.
