Fibre Optic Cable Repair [2016-2020]: Notes

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

SPECIAL TOOLS

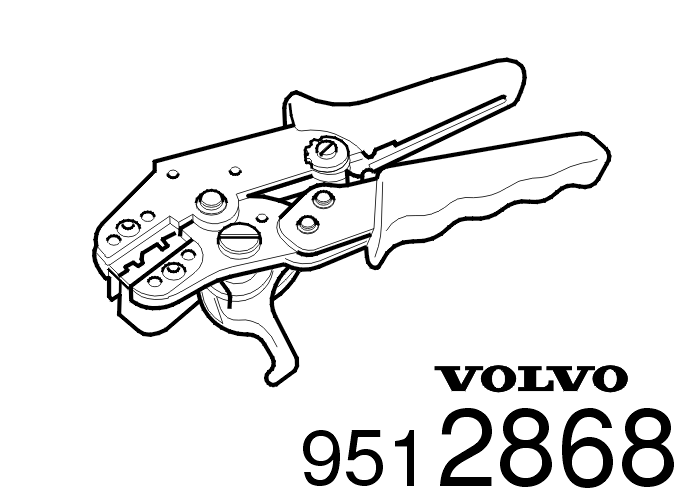

Courtesy of VOLVO CARS CORPORATION	951 2868 Fiber cutter Tool number: 951 2868 Tool description: Fiber cutter Tool boards: 39

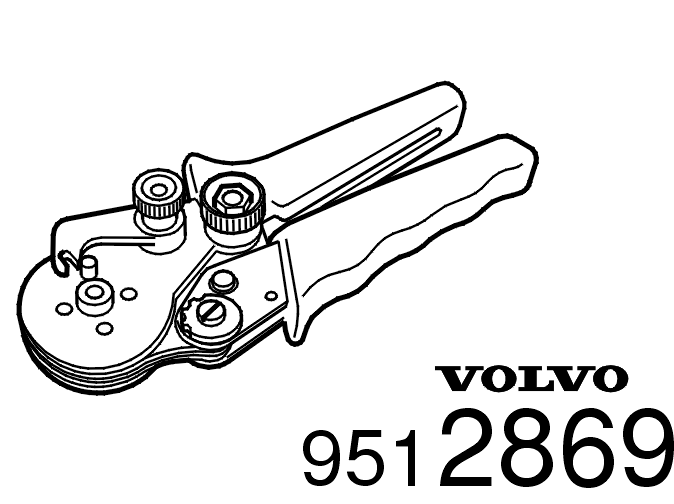

Courtesy of VOLVO CARS CORPORATION	951 2869 Ferrule crimping tool Tool number: 951 2869 Tool description: Ferrule crimping tool Tool boards: 39

REPAIR

NOTE:

Always follow the manufacturer's instructions when handling the equipment.

NOTE:

A fibre optic cable must not be spliced. A damaged fibre optic cable can only be repaired if there is sufficient length for a new end sleeve to be installed. If not, a new fibre optic cable must be routed parallel to the damaged cable as a replacement.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.
