Fire Extinguisher [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

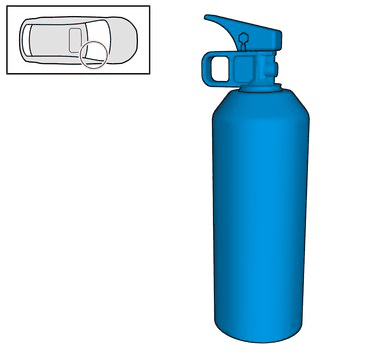

Orientation view

Courtesy of VOLVO CARS CORPORATION

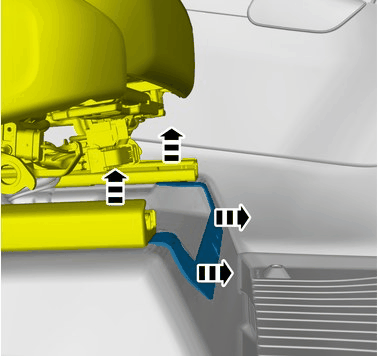

Loosen the marked detail/details.

Courtesy of VOLVO CARS CORPORATION

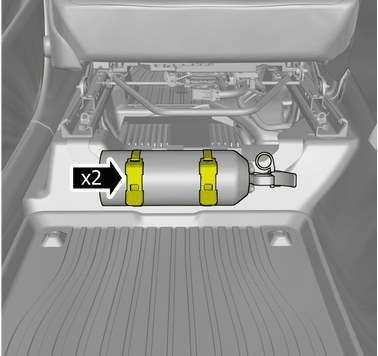

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

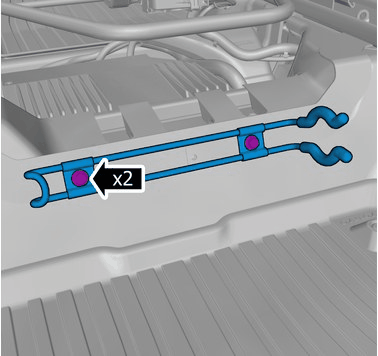

Remove the screws.

Remove the marked part.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

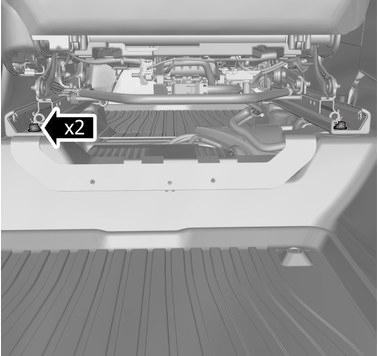

Remove the screws.

Torque: Front seat to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

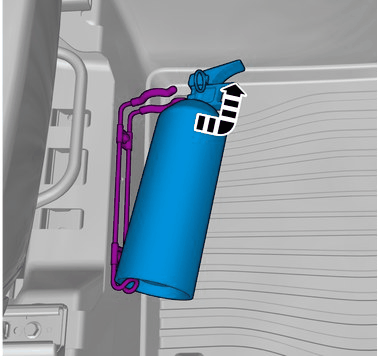

Lift the marked component up

Remove the marked part.
