Battery Disconnecting And Connecting [2016-2020]

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

DISCONNECTING THE BATTERY

WARNING:

The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.

See the battery and charging safety information, refer to: SAFETY INFORMATION BATTERY AND CHARGING

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

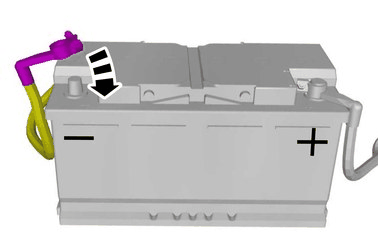

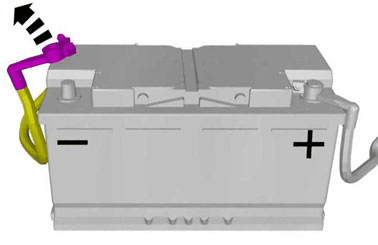

Loosen the nut.

VEHICLES WITH SUPPORT BATTERY

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the vehicle electrical system is fully depowered and no other power source is connected.

ALL VEHICLES

CONNECTING THE BATTERY

Courtesy of VOLVO CARS CORPORATION

Torque: Battery cable for battery, 6Nm

Courtesy of VOLVO CARS CORPORATION

WARNING:

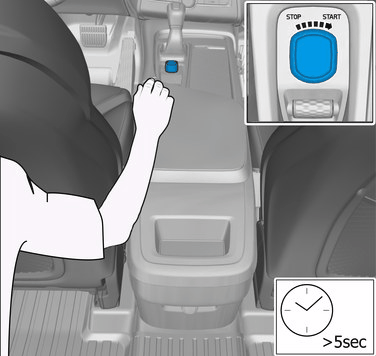

The first time the vehicle is activated after the battery has been disconnected, this must be performed from the rear seat, avoid the work area for the air bags.

Reset the vehicle settings after completed test or work.
