Inverter Electric Rear Axle Drive Module (IEM) [2016-2018, 2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Perform High Voltage Battery, disconnecting and connecting, refer to: HIGH VOLTAGE BATTERY, DISCONNECTING AND CONNECTING

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Courtesy of VOLVO CARS CORPORATION

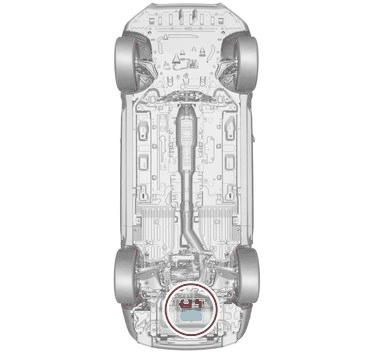

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

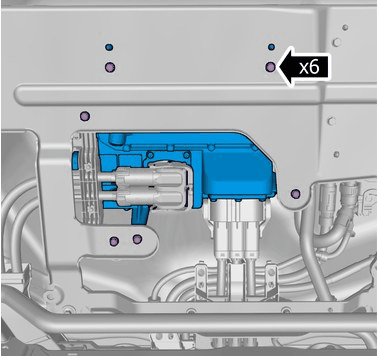

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

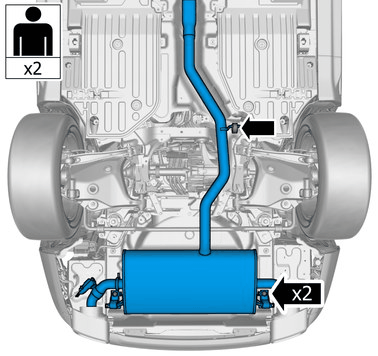

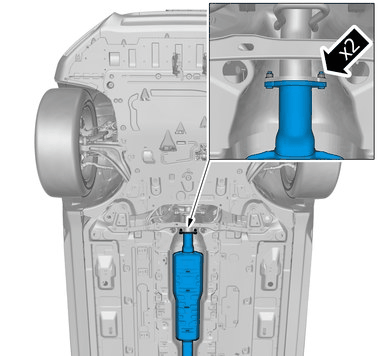

NOTE:

This step requires the aid of another technician.

Loosen the marked detail/details.

Remove the screws.

Torque:Exhaust muffler bracket, to Body frame,

Stage 1: 50 Nm
Stage 2: 90 °

Courtesy of VOLVO CARS CORPORATION

Install the screws.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

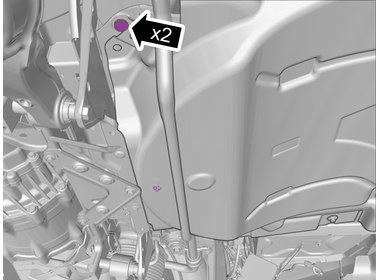

Remove the nuts.

Remove the screws.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

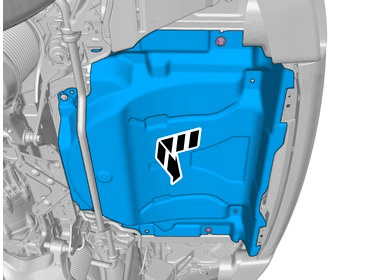

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

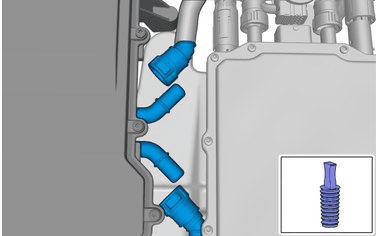

Install the hoses.

Use hands only.

Courtesy of VOLVO CARS CORPORATION

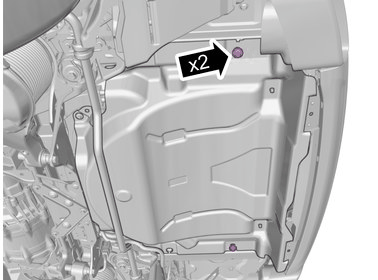

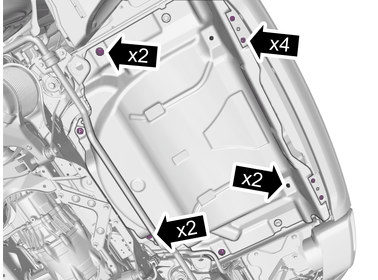

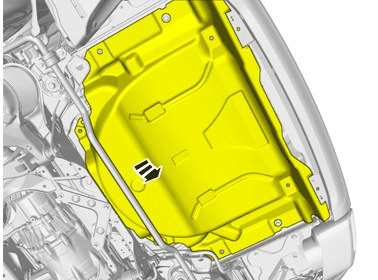

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

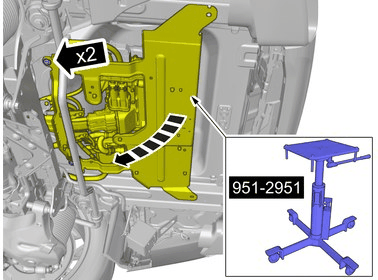

CAUTION:

Take extra care not to damage the wiring harnesses.

Refer to: Special Tool: 951 2951

Remove the screws.

Lower to suitable height.

Courtesy of VOLVO CARS CORPORATION

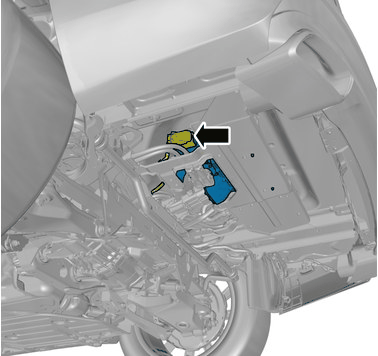

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

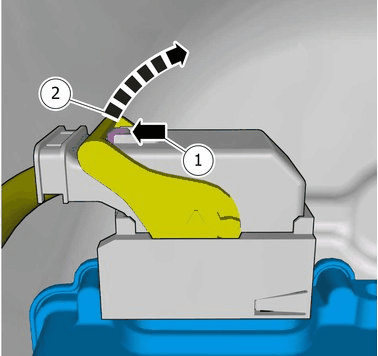

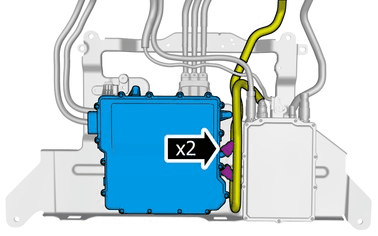

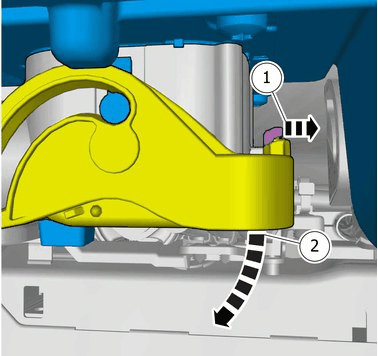

Release the connector's catch.
Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: IEM to console, 13Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

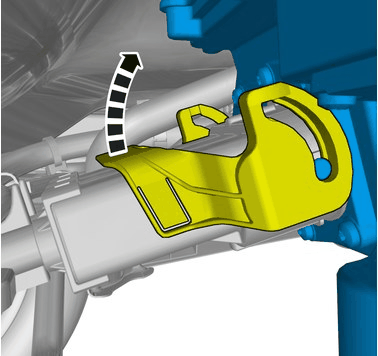

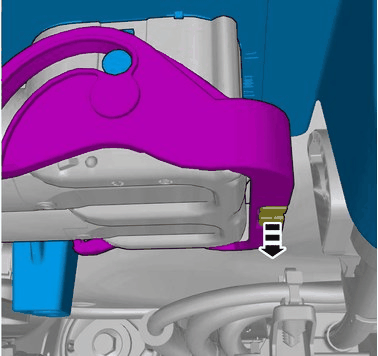

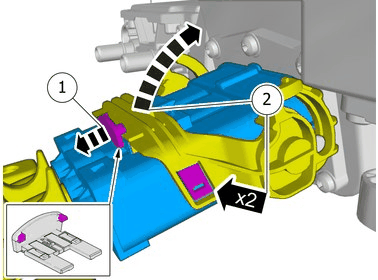

Release the connector's catch.

Courtesy of VOLVO CARS CORPORATION

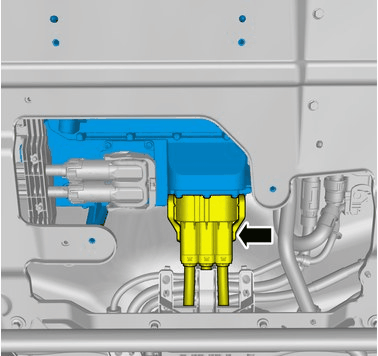

Release the connector's catch.
Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

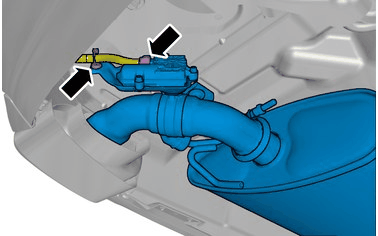

Disconnect the connector.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

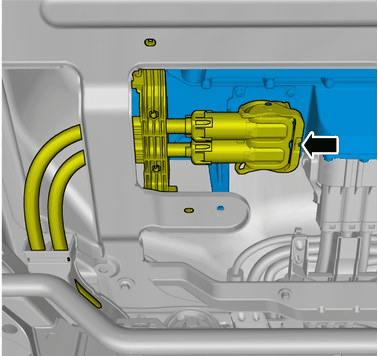

WARNING:

Be prepared to collect escaping fluid.

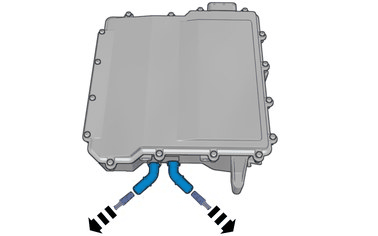

Undo the hoses from the connections.

Remove the marked part.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

Refer to: Special Tool: 951 2578 ,

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the component has been drained of fluid.
