Removal And Installation
See information about lifting points body, refer to: JACKING POINTS BODY

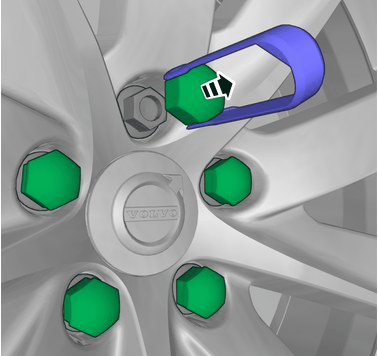

Remove the marked detail/details.
Use: Pliers
CAUTION:
Torque also applies to lockable bolts.
NOTE:

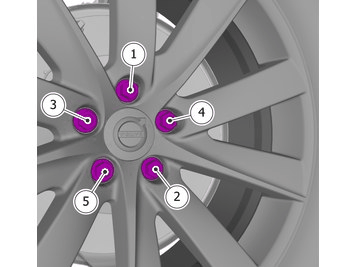

Make sure to follow the sequence indicated.
Torque:Aluminum wheel rim to wheel hub,
- Stage 1: 4Nm
- Stage 2: 50Nm
- Stage 3: 140Nm
WARNING:

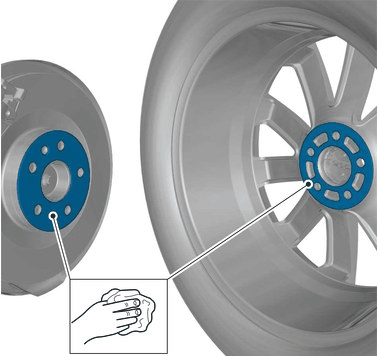

Make sure that the mating faces are clean and free of corrosion and foreign material.
Use: Installation paste, 1161397
CAUTION:
When installing another dimension, software should be downloaded according to wheel size.
Order and download the appropriate Volvo software according to: (VIDA/Software/Function changes)
