Vibration Damper, Rear, Left [2016-2020, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

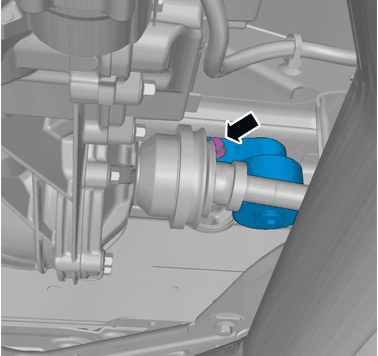

GLL1031675Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Fold marked part aside.

Torque:  M12, 80Nm
