Drive Flange Final Drive [2016-2019, B4204T23, TG-81SC AWD | 2016-2019, B4204T27, TG-81SC AWD]: Notes

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

SPECIAL TOOLS

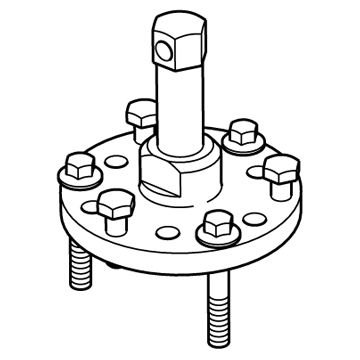

Courtesy of VOLVO CARS CORPORATION	999 5759 Adapter flange All-wheel drive (AWD)  Tool number:  999 5759 Tool description:  Adapter flange All-wheel drive (AWD) Tool boards:  46

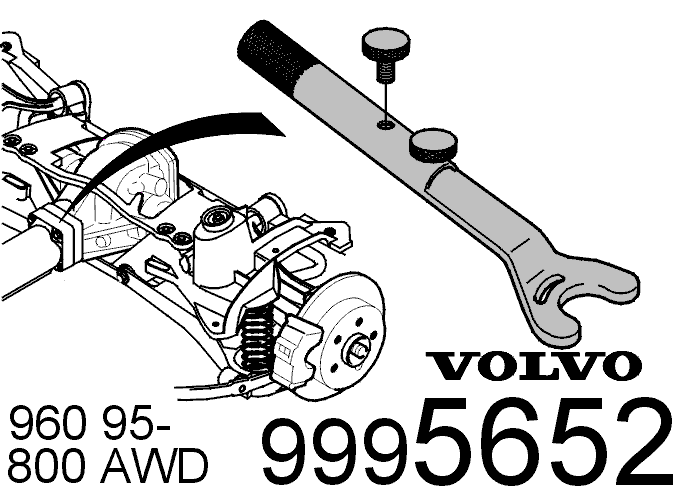

Courtesy of VOLVO CARS CORPORATION	999 5652 Counterh.(drive flange/angle/final gears)1065, 1165  Tool number:  999 5652 Tool description:  Counterh.(drive flange/angle/final gears)1065, 1165 Tool boards:  46
Courtesy of VOLVO CARS CORPORATION	999 5893 Puller (drive flange-rear wheel hub) B-version  Tool number:  999 5893 Tool description:  Puller (drive flange-rear wheel hub) B-version Tool boards:  46
