Differential Fluid Level Check [2016-2019, TG-81SC AWD | 2020, B4204T23; B4204T27, TG-81SC AWD]: Adjustment

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

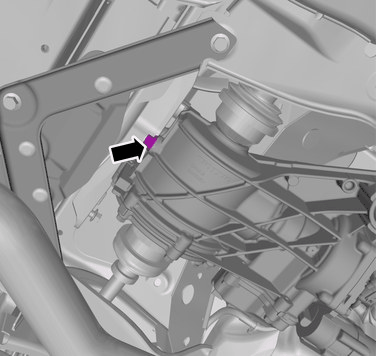

GLL1000668Courtesy of VOLVO CARS CORPORATION
WARNING:

Be prepared to collect escaping fluid.

Remove the screw.

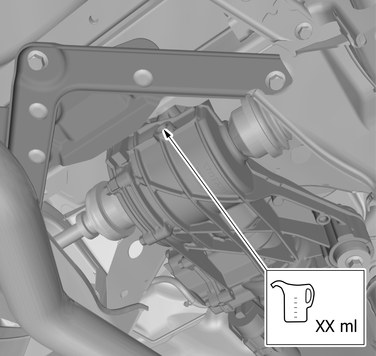

GLL1023867Courtesy of VOLVO CARS CORPORATION
CAUTION:

The fluid must be allowed to escape until a continuous flow changes into single drops.

Follow the instructions regarding transmission lubricant, refer to: LUBRICANT TRANSMISSION
