Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Remove the plenum cover, refer to: PLENUM COVER
Set the vehicle to Active mode, described in user mode, refer to: USAGE MODE
Activate service position according to: Diagnostics / Components / Control modules/ Climate Control Module (CCM) / Diagnostic sequences / Service position of damper motors
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

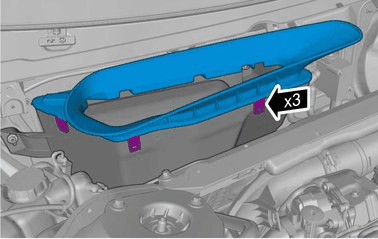

Release the catches.
Remove the part carefully

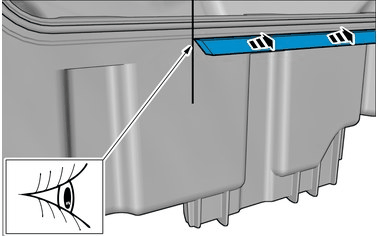

Make sure that the flaps have reached service position (closed).
Check with your hand that the flaps have closed. If not, run the script for Service position. Do not force the flaps closed by hand!
Remove the nuts.

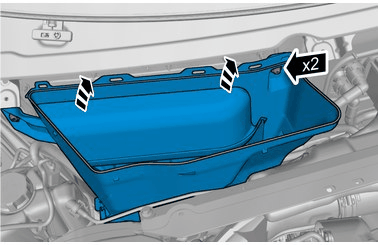

Remove the part carefully
Remove the marked part.
CLEANING

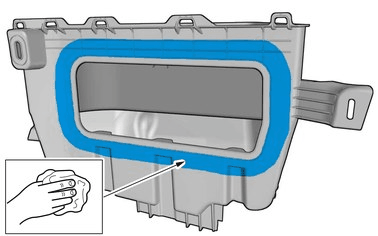

Clean the marked area.
Use: Cleaning agent, 1161721
Clean the marked area.
PREPARATION
LEFT HAND DRIVE VEHICLES
Install the marked component.

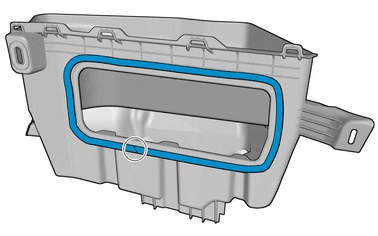

Make sure that the seal is correctly located.

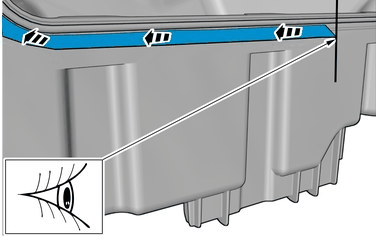

Make sure to place the joint where indicated in the graphic.
RIGHT-HAND DRIVE VEHICLES
Install the marked component.

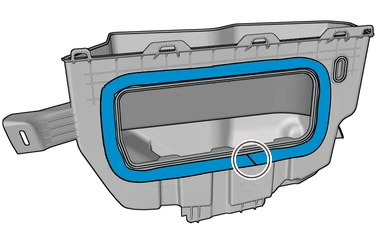

Make sure that the seal is correctly located.
Make sure to place the joint where indicated in the graphic.
INSTALLATION
Make sure that the component is positioned correctly.
Make sure to follow the sequence indicated.

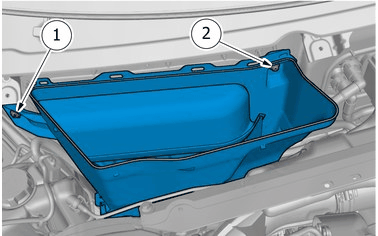

Install the nuts
Torque: Air inlet housing, to Body, 3Nm
To install, reverse the removal procedure.
