Removal And Installation

REMOVAL

Remove the plenum cover, refer to: PLENUM COVER

Set the vehicle to Active mode, described in user mode, refer to: USAGE MODE

Activate service position according to: Diagnostics / Components / Control modules/ Climate Control Module (CCM) / Diagnostic sequences / Service position of damper motors

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

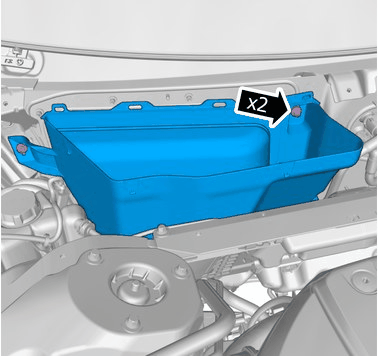

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

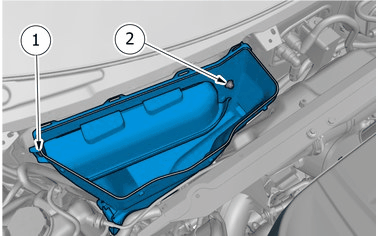

Remove the marked part.

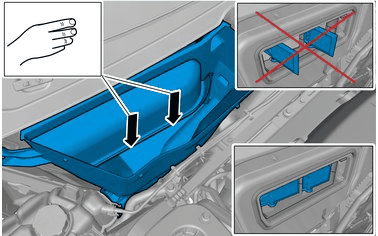

Check with your hand that the flaps have closed. If not, run the script for Service position. Do not force the flaps closed by hand!

Courtesy of VOLVO CARS CORPORATION

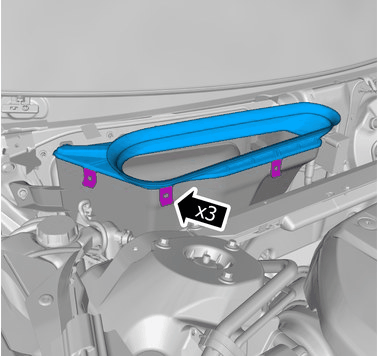

Remove the nuts.

Remove the marked part.

CLEANING

Courtesy of VOLVO CARS CORPORATION

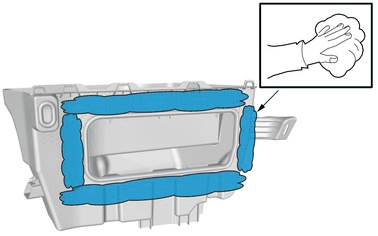

Clean the marked area.

Courtesy of VOLVO CARS CORPORATION

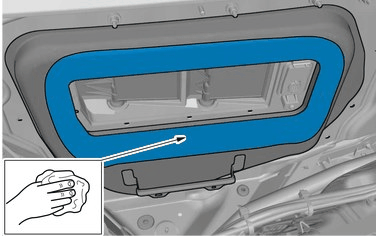

Clean the marked area.

Use:  Cleaning agent, 1161721

PREPARATION

LEFT HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

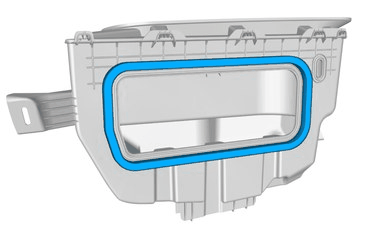

Install the marked component.

RIGHT-HAND DRIVE VEHICLES

Courtesy of VOLVO CARS CORPORATION

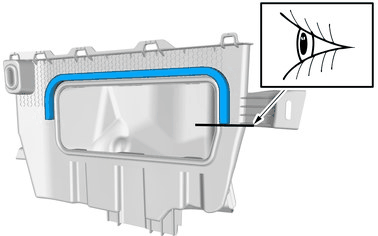

Install the marked component.

ALL VEHICLES

INSTALLATION

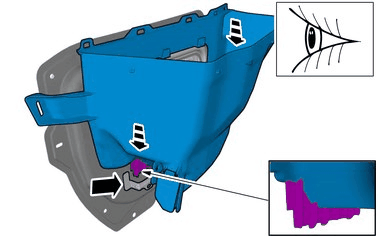

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  Air inlet housing, to Body, 3Nm

Install the nuts

To install, reverse the removal procedure.
