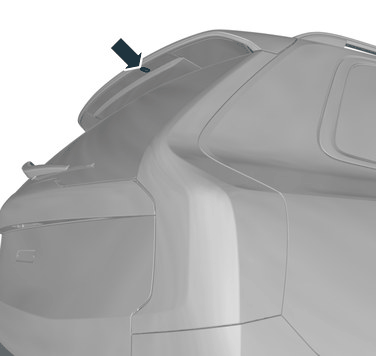

Nozzle Rear Window Washer [2016-2020]: Removal
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

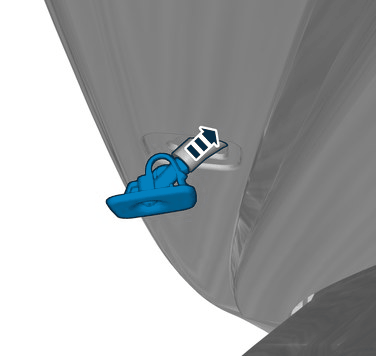

Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|
WARNING:
Be prepared to collect escaping fluid.
Undo the hose from the connection.

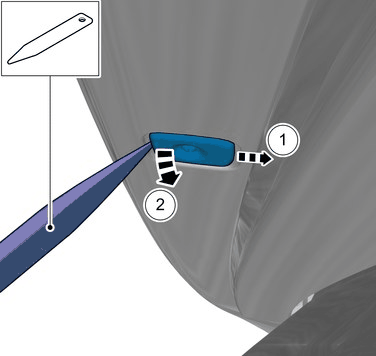

Remove the marked part.
