Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Perform High Voltage Battery, disconnecting and connecting, refer to: HIGH VOLTAGE BATTERY, DISCONNECTING AND CONNECTING

Remove cover charging connection, refer to: CHARGE CONNECTOR DOOR

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

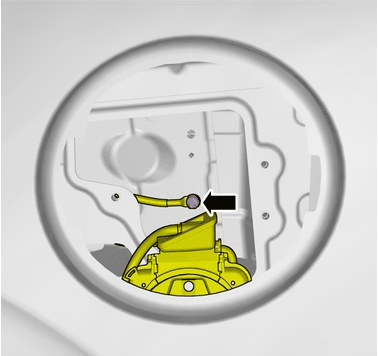

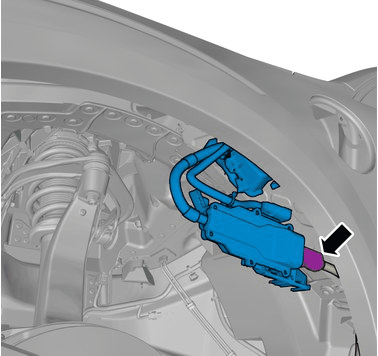

Remove the nut.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

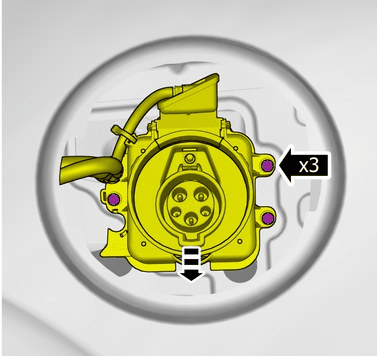

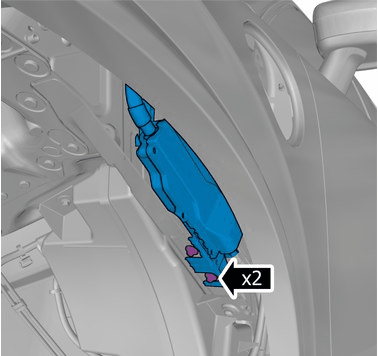

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

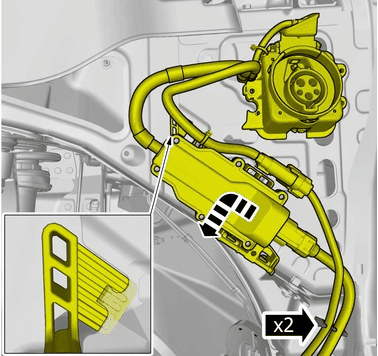

Loosen the wiring harness or move it to the side.

Lift the marked component forward.

Courtesy of VOLVO CARS CORPORATION

NOTE:

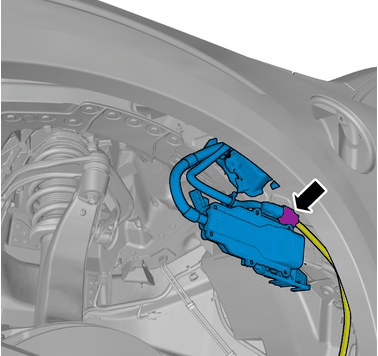

Orientation view

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

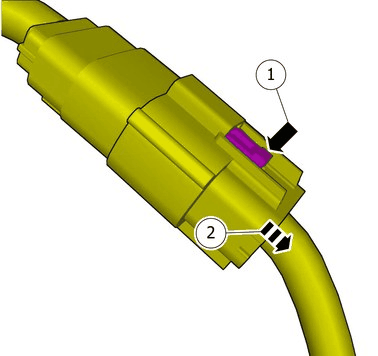

NOTE:

The connector is equipped with three catches.

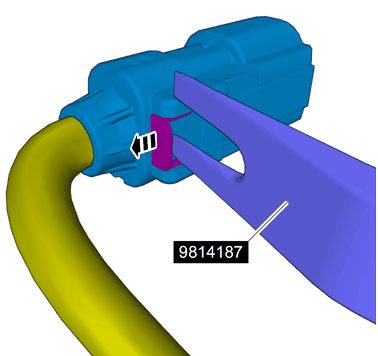

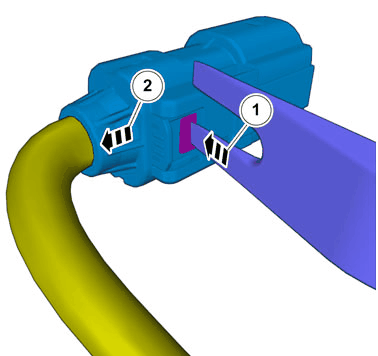

Release the connector's catch.

Courtesy of VOLVO CARS CORPORATION

Release the connector's catch.

Courtesy of VOLVO CARS CORPORATION

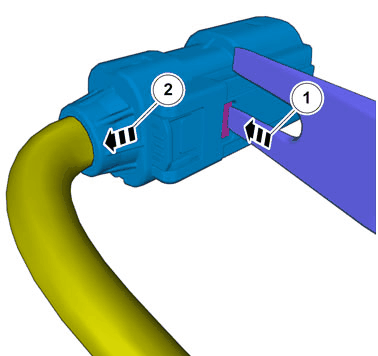

Release the connector's catch.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Observe caution when carrying out this step.

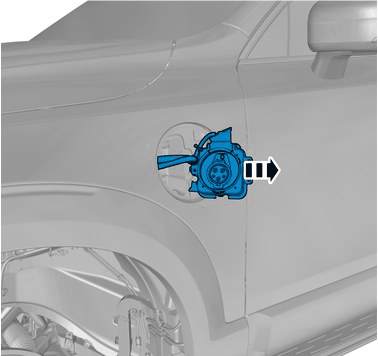

Remove the marked detail/details.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

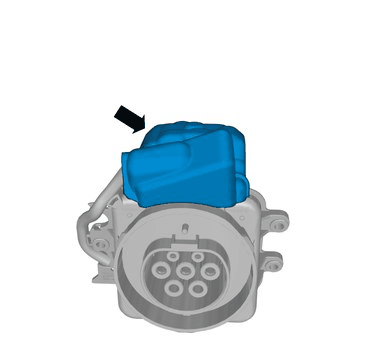

Install the marked component.

INSTALLATION

To install, reverse the removal procedure.
