Charge Connector Fuse [2016-2020, B4204T28 | 2020, B4204T39]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Only specially trained technicians may work with the High voltage system.

Follow the safety information for electric vehicles, refer to: SAFETY INFORMATION FOR ELECTRICALLY POWERED VEHICLES

Perform High Voltage Battery, disconnecting and connecting, refer to: HIGH VOLTAGE BATTERY, DISCONNECTING AND CONNECTING

Remove left-hand front wheel arch liner, refer to: FRONT WHEEL ARCH LINER

Courtesy of VOLVO CARS CORPORATION

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

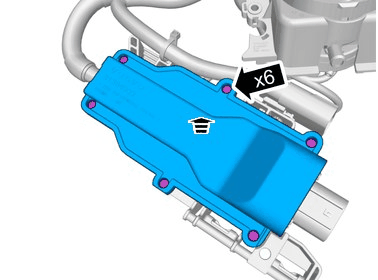

Remove the screws.

Remove the marked part.

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

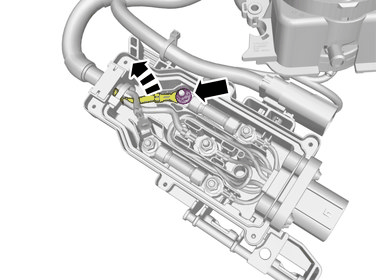

Remove the nut.

Loosen the wiring harness or move it to the side.

Torque: Nut M5, to fuse, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Loosen the wiring harness or move it to the side.

Torque: Nut M5, to fuse, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Loosen the wiring harness or move it to the side.

Torque: Nut M5, to fuse, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Loosen the wiring harness or move it to the side.

Torque: Nut M5, to fuse, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
