Antenna, Keyless Vehicle, Rear [2016-2020]: Removal

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

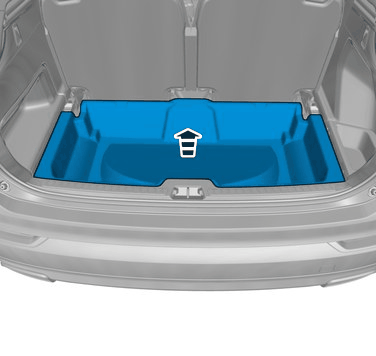

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

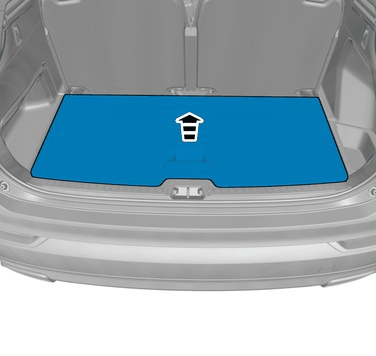

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

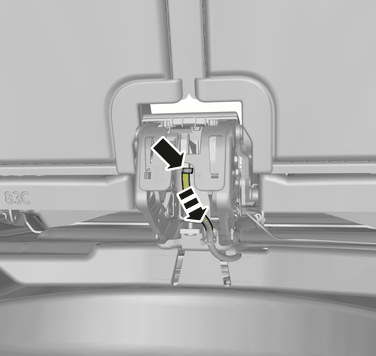

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

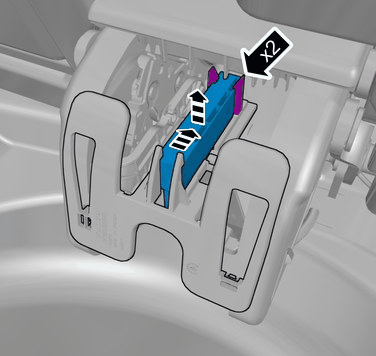

Loosen the clips.

Remove the marked part.
