Door Window Motor Initialization [2016-2020]

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES
WARNING:

The anti-trap function will not operate during the initialization procedure.

Set the vehicle to Active mode, described in user mode, refer to: USAGE MODE

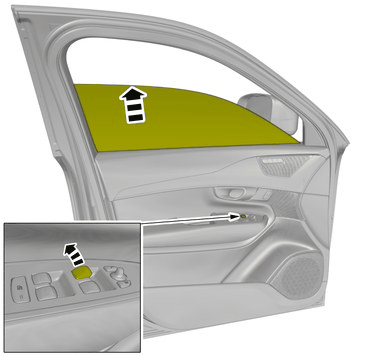

GLL1026561Courtesy of VOLVO CARS CORPORATION

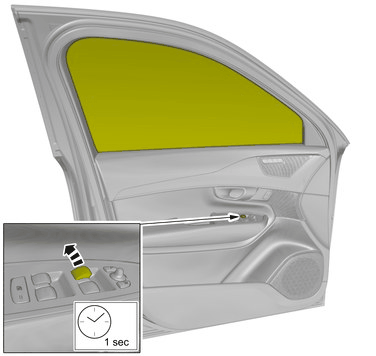

GLL1007700Courtesy of VOLVO CARS CORPORATION

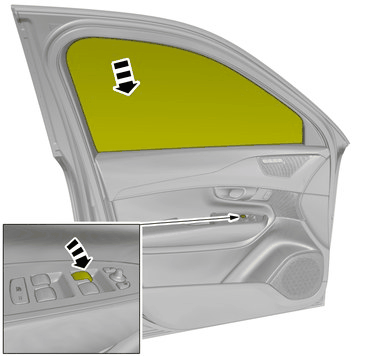

GLL1037399Courtesy of VOLVO CARS CORPORATION

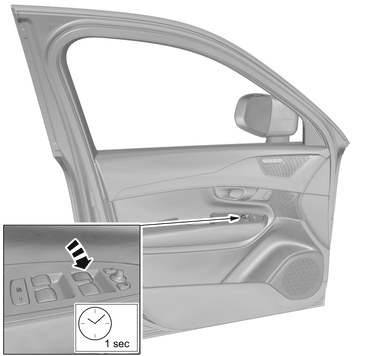

GLL1016635Courtesy of VOLVO CARS CORPORATION
