Side Panel Front Seat [2016-2020]: Removal
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

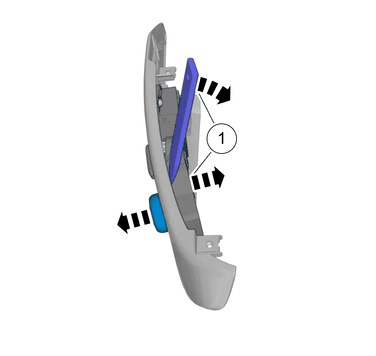

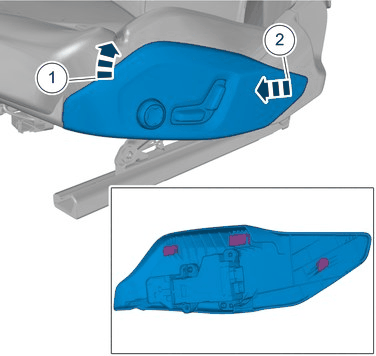

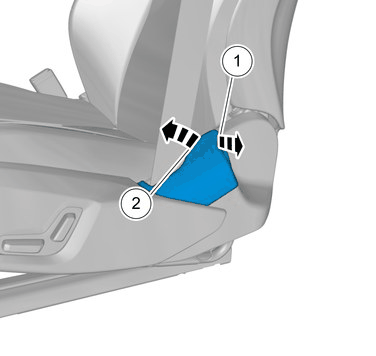

Remove the panel.
 Courtesy of VOLVO CARS CORPORATION
|

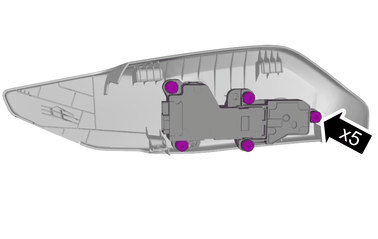

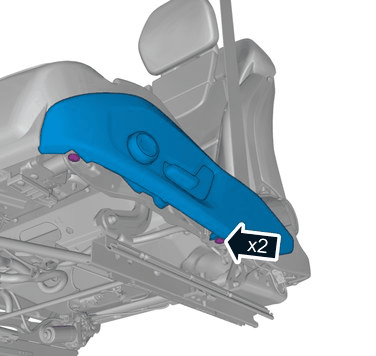

Remove the screws.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

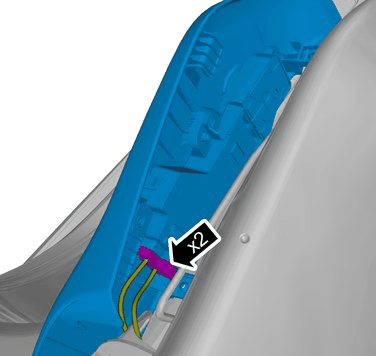

Disconnect the connectors.
VEHICLES WITHOUT POWER SEATS
 Courtesy of VOLVO CARS CORPORATION
|

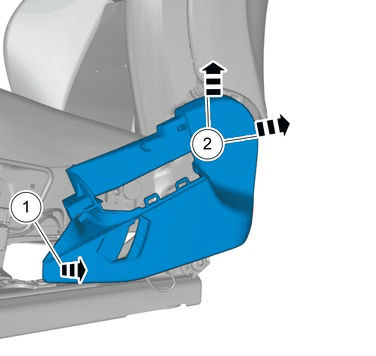

Remove the marked part.
ALL VEHICLES
 Courtesy of VOLVO CARS CORPORATION
|

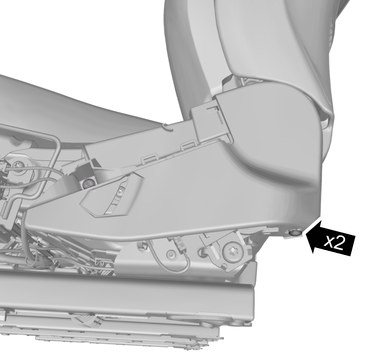

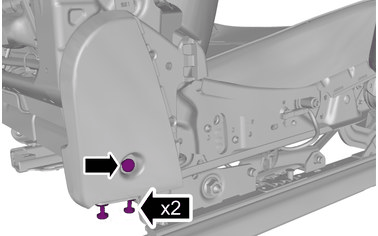

Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|

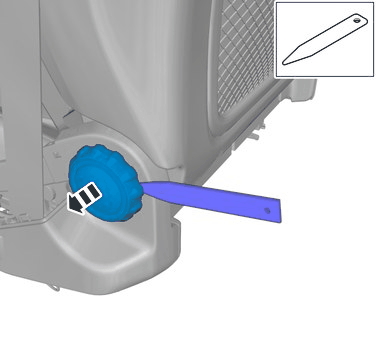

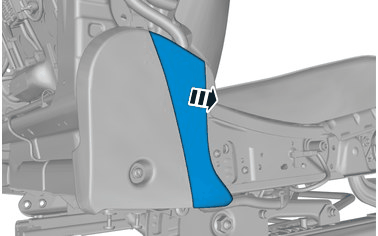

Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|

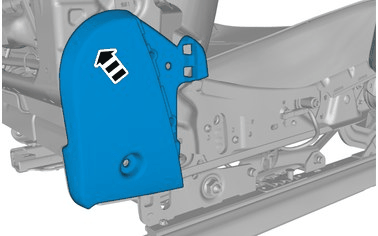

Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|

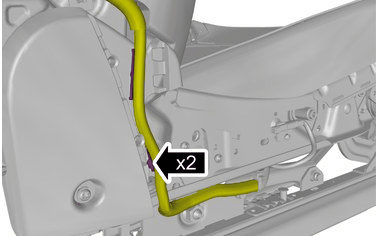

Remove the cable harness clips.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the fasteners.
Remove the screw.
 Courtesy of VOLVO CARS CORPORATION
|

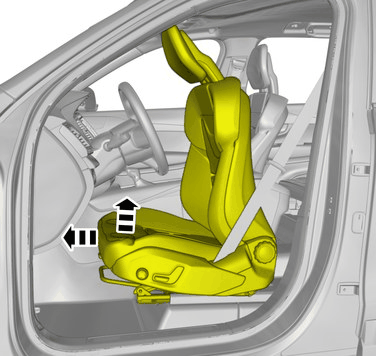

Remove the marked part.
