Side Pad, Adjustable [2016-2020]: Removal

Remove back cushion front seat, refer to: FRONT SEAT BACKREST

Courtesy of VOLVO CARS CORPORATION

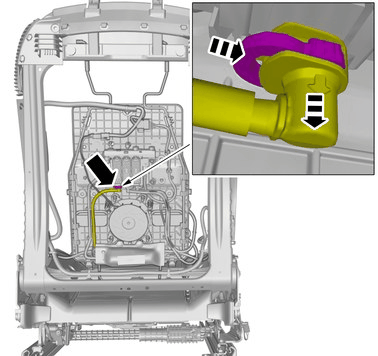

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

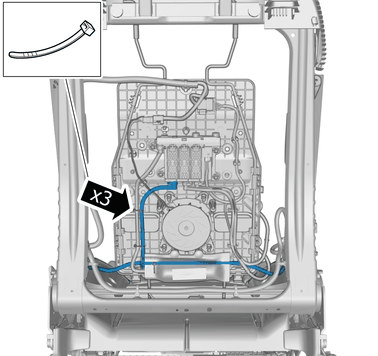

Remove the fasteners.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

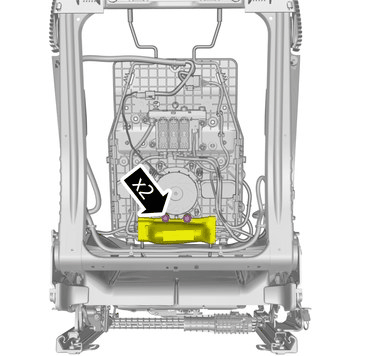

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

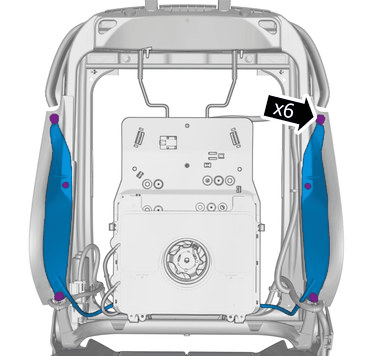

Remove the fasteners.

Remove the marked part.
