Removal And Installation

REMOVAL

TRANSFERRING COMPONENTS

Remove the following items:

• Front seat cushion, refer to: FRONT SEAT CUSHION
• back rest rear panel, refer to: BACK REST REAR PANEL
• Front safety belt buckle, refer to: FRONT SAFETY BELT BUCKLE
• Seat track front seat, refer to: SEAT TRACK FRONT SEAT
• Seat cushion fan, refer to: SEAT CUSHION FAN
• motor, seat cushion extension, refer to: MOTOR, SEAT CUSHION EXTENSION

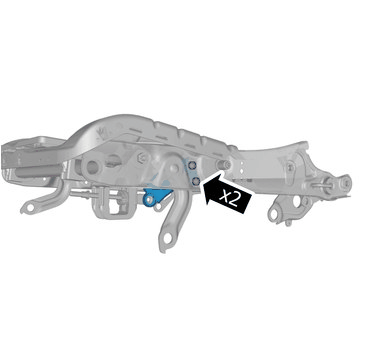

Courtesy of VOLVO CARS CORPORATION

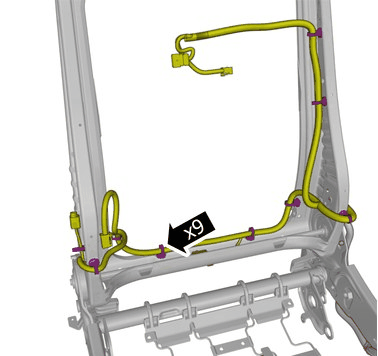

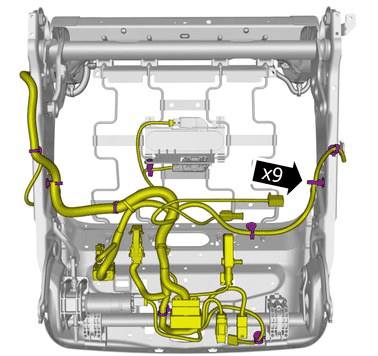

Remove the cable harness clips.

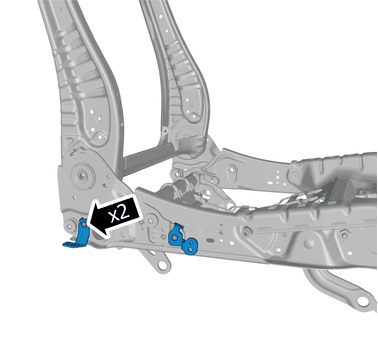

Courtesy of VOLVO CARS CORPORATION

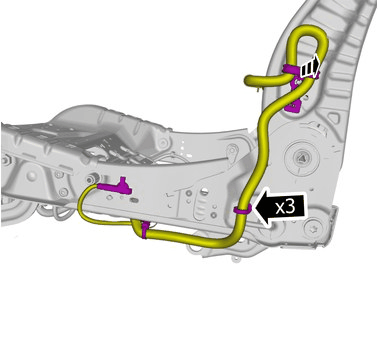

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

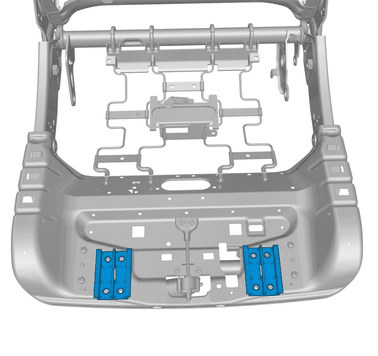

Courtesy of VOLVO CARS CORPORATION

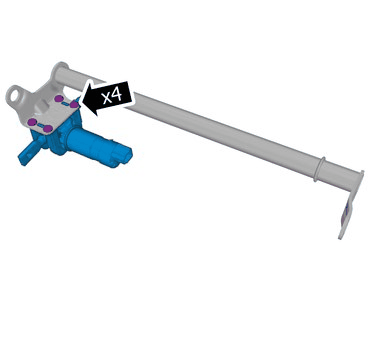

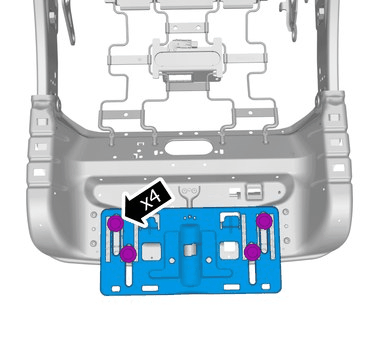

Remove the screws.

Remove the marked detail/details.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Torque:  M5, 5Nm

Loosen the screws.

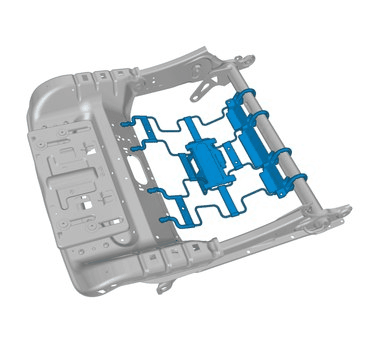

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

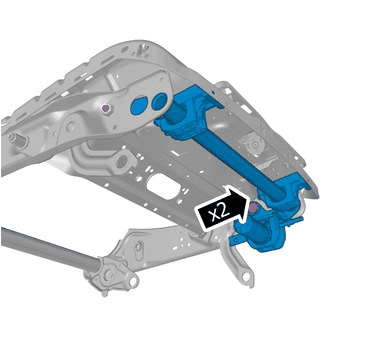

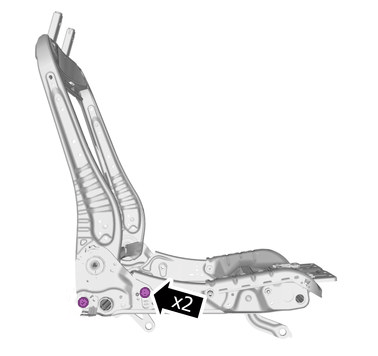

Remove the screws.

On both sides.

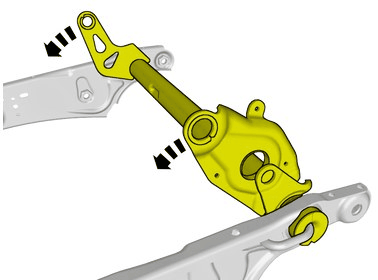

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

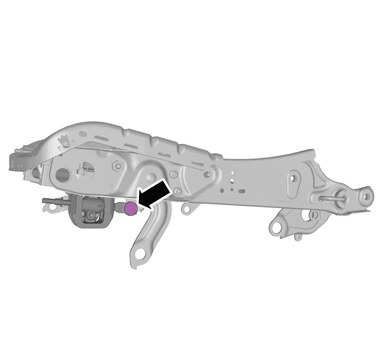

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

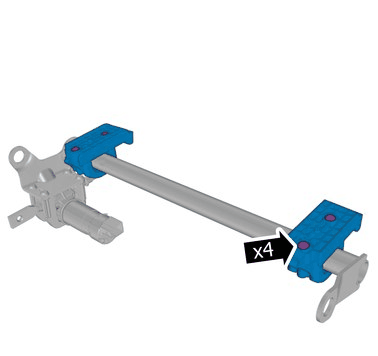

Remove the screws.

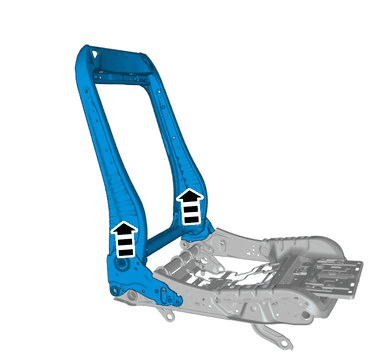

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

INSTALLATION

Installing is shown on left seat.

VEHICLES WITH TWIN ENGINE

Courtesy of VOLVO CARS CORPORATION

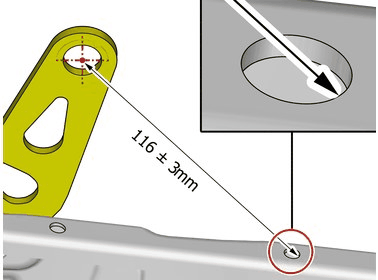

Courtesy of VOLVO CARS CORPORATION

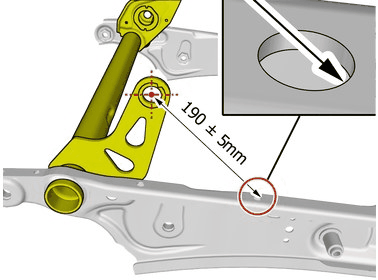

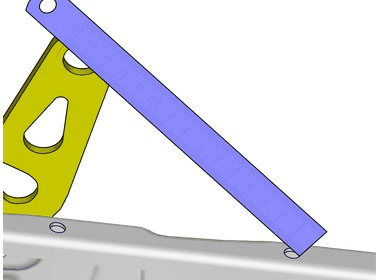

Use:  Steel scale

Courtesy of VOLVO CARS CORPORATION

Adjust to the specified value.

Courtesy of VOLVO CARS CORPORATION

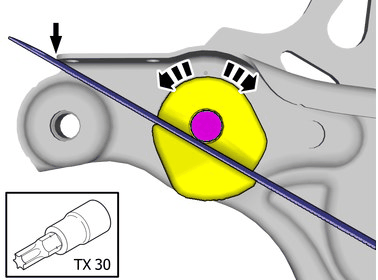

Courtesy of VOLVO CARS CORPORATION

Use:  Steel scale

Tighten the screw.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

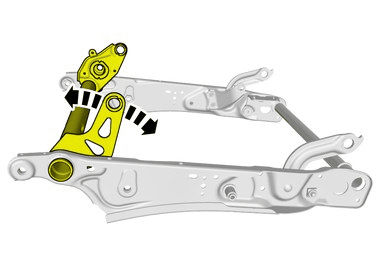

Adjust to the specified value.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

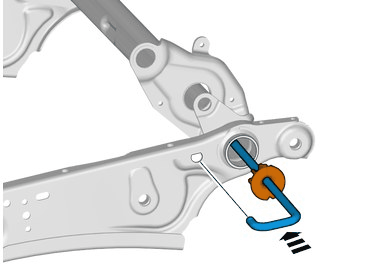

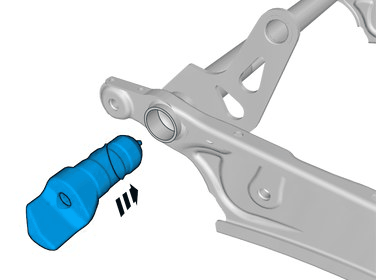

Turn in direction of arrow until stop.

Use hands only.

To install, reverse the removal procedure.
