Panel, D-Pillar [2016-2020]: Removal

Courtesy of VOLVO CARS CORPORATION

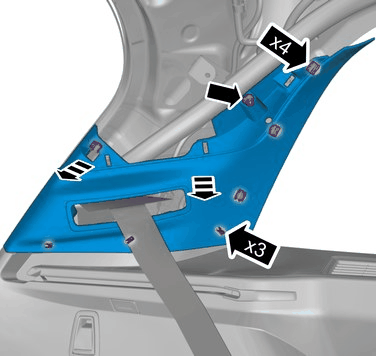

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

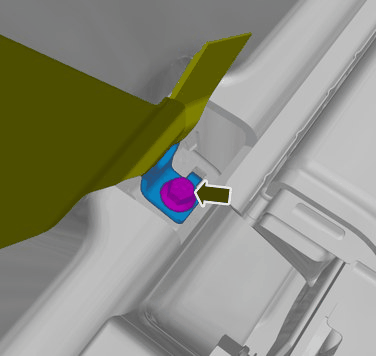

1. Torque:  Panel, to D-Pillar, 4.5Nm
2. Remove the screw.
3. Remove the panel.

Courtesy of VOLVO CARS CORPORATION

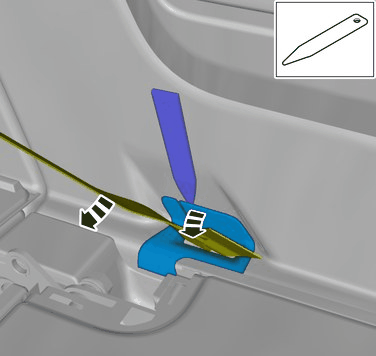

Remove the nut.

Remove the panel.

VEHICLES WITH SEVEN SEATS

Courtesy of VOLVO CARS CORPORATION

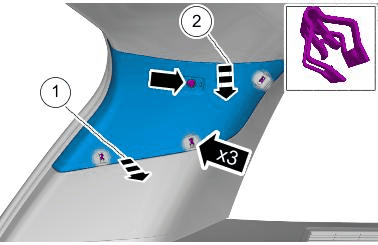

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

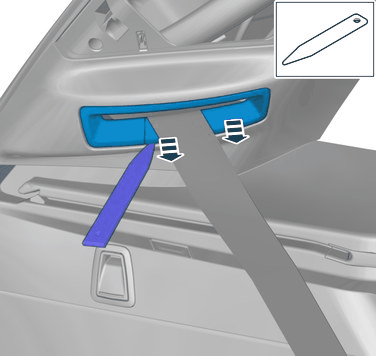

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

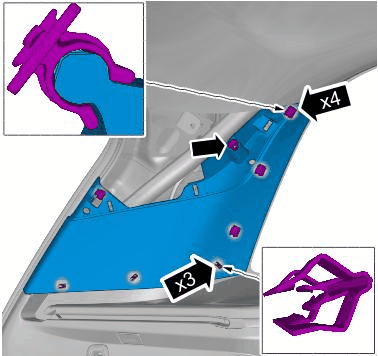

Torque:  Safety belt lower anchor to body (rear), 40Nm

Courtesy of VOLVO CARS CORPORATION

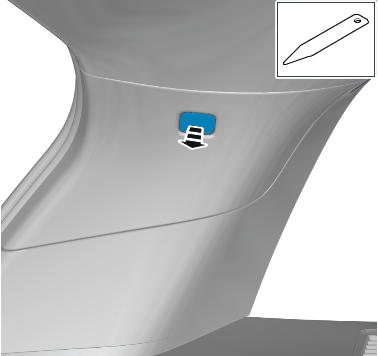

Remove the nut.

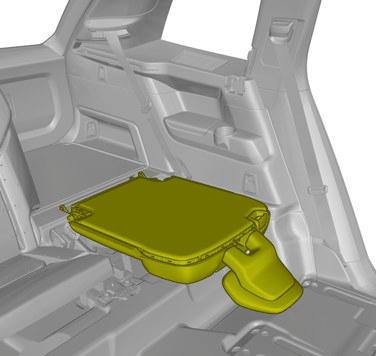

Remove the marked part.
