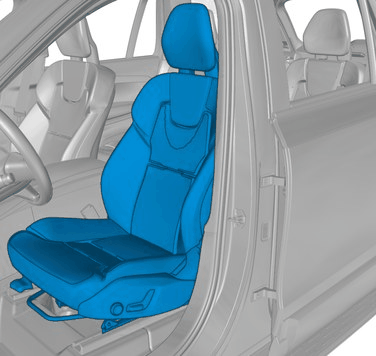

Front Seat [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove quick-coupling belt, refer to: SAFETY BELT ANCHOR QUICK RELEASE

Courtesy of VOLVO CARS CORPORATION

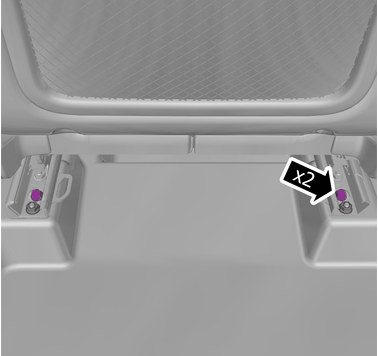

Torque: Front seat to body, 40Nm

Remove the screws.

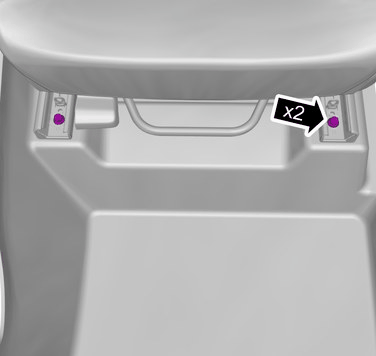

APPLIES TO EXCELLENCE

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

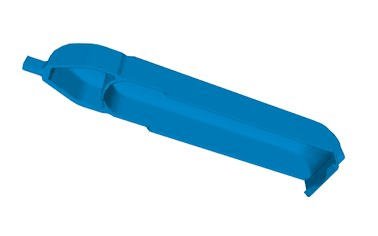

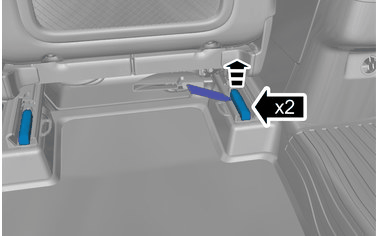

Use: Interior trim remover

Remove the marked parts.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Torque: Front seat to body, 40Nm

Remove the screws.

Disconnect the battery, refer to: BATTERY

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connector.

Remove the fastener.

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

Remove the marked part.
