Front Seat Backrest [2016-2020]: Removal

Remove relevant side front seat, refer to: FRONT SEAT

Remove head restraint, front seat, refer to: HEAD RESTRAINT FRONT SEAT

Remove airbag front seat, refer to: AIR BAG, FRONT SEAT

Courtesy of VOLVO CARS CORPORATION

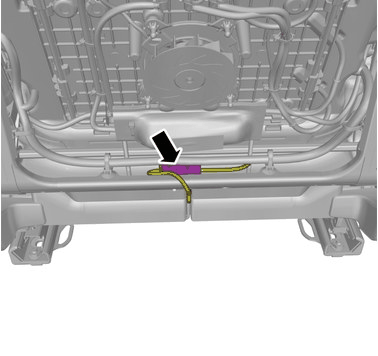

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

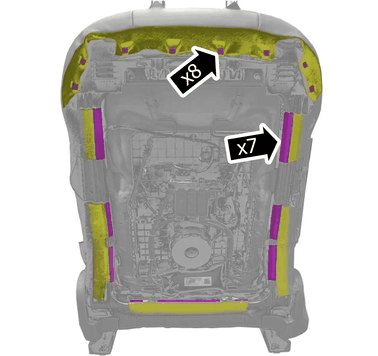

Release the catches.

Courtesy of VOLVO CARS CORPORATION

VEHICLES WITH SEAT VENTILATION

Courtesy of VOLVO CARS CORPORATION

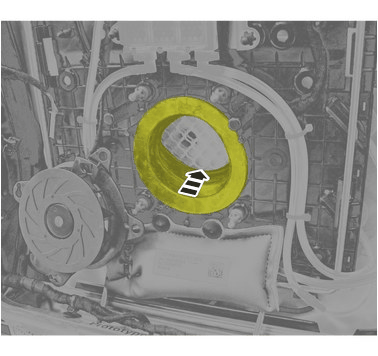

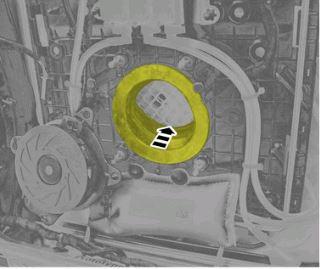

Release the locks.

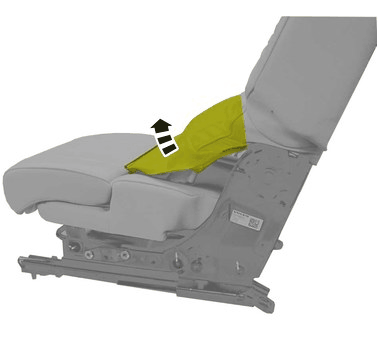

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

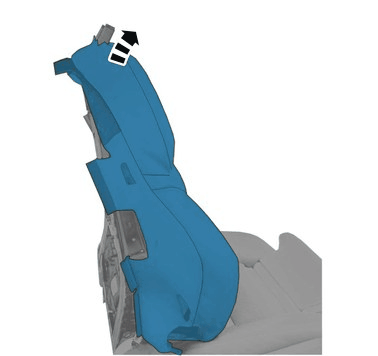

Fold marked part aside.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

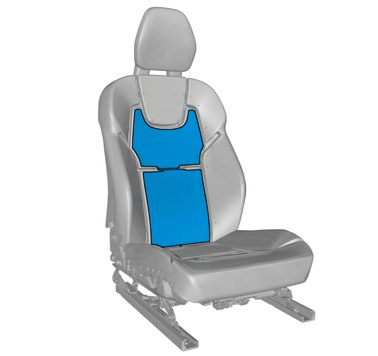

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

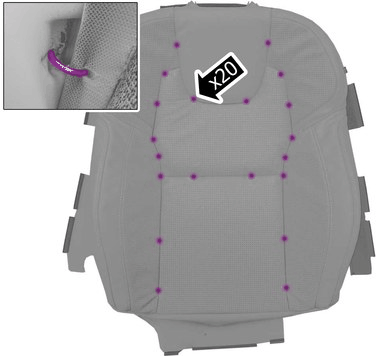

Use:  Hogring pliers

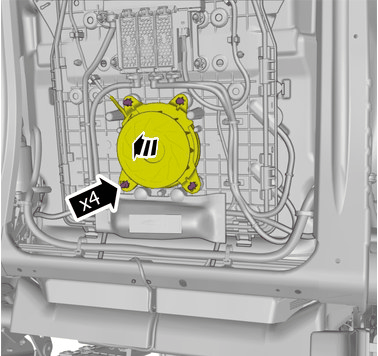

Remove the fasteners.

VEHICLES WITH BACK REST MASSAGE FUNCTION

Courtesy of VOLVO CARS CORPORATION

APPLIES TO ALL OTHER VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the marked
