Backrest Fan [2016-2020]: Removal

Remove back rest, rear panel, refer to: BACK REST REAR PANEL

Courtesy of VOLVO CARS CORPORATION

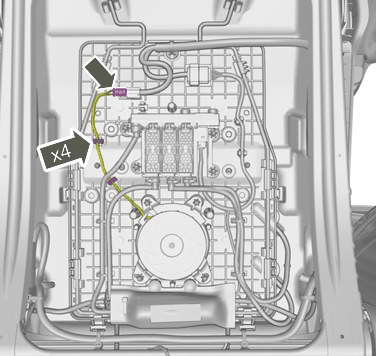

Disconnect the connector.

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

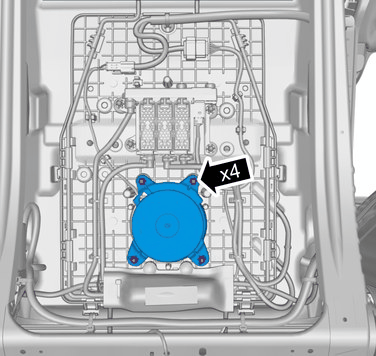

Remove the fasteners.

Remove the marked part.
