Inflatable Curtain [2016-2020]: Removal
Removal steps in this procedure may contain installation details.
The supplemental restraint system (SRS) is active for a certain length of time after the power supply has been disconnected. Wait for a minimum of 30 seconds before disconnecting or removing any SRS components.
Follow instructions about safety information pyrotechnical system, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
See information regarding the handling of non-deployed pyrotechnical parts, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART
Perform battery disconnecting and connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
Lower the headlining, refer to: HEADLINING

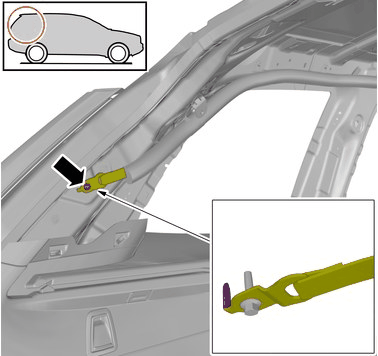

Torque: Inflatable curtain to the body, 6Nm
Loosen the screws.

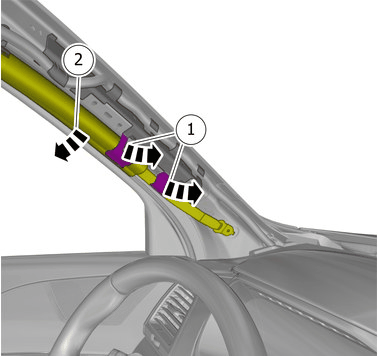

Fold marked part aside.

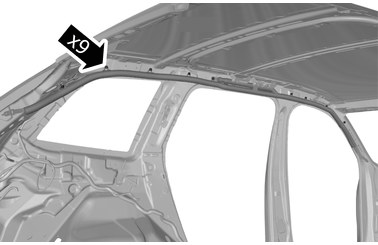

Torque: Inflatable curtain to the body, 6Nm
Loosen the screws.

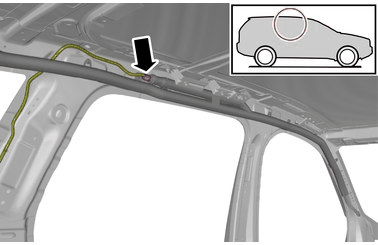

Disconnect the connector ignition cable, refer to: IGNITER WIRE CONNECTOR
Disconnect the connector.

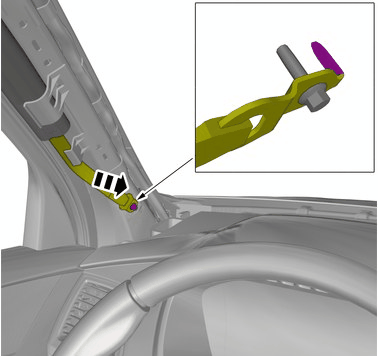

Torque: Inflatable curtain to the body, 6Nm
Loosen the screws.

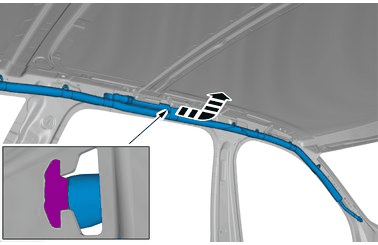

Remove the marked part.
