Removal And Installation

REMOVAL

See information about bonded windows, general safety information, refer to: BONDED WINDOW, GENERAL SAFETY INFORMATION

See information about bonded windows, general information, refer to: BONDED WINDOW GENERAL, INFORMATION

Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

Remove handle outer boot lid, refer to: OUTER TAILGATE/TRUNK LID HANDLE

Remove spoiler rear, refer to: SPOILER REAR

Courtesy of VOLVO CARS CORPORATION

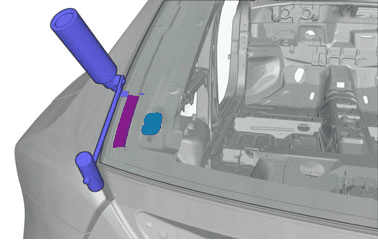

Disconnect the connectors.

Use:  Tape,

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2925

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2786

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2335

INSTALLATION

See information about bonded windows, general safety information, refer to: BONDED WINDOW, GENERAL SAFETY INFORMATION

See information about bonded windows, general information, refer to: BONDED WINDOW GENERAL, INFORMATION

Courtesy of VOLVO CARS CORPORATION

Use:  H Cleaner, 31375637

Courtesy of VOLVO CARS CORPORATION

Use:  H Cleaner, 31375637

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Use:  Activator,

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

Use:  Activator,

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

1. Use:  Mixer nozzle, window, 32244509
2. Use:  Mixer nozzle, body, 32244510

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 981 4259 , Special Tool: 981 4260 , and Special Tool: 981 4261

Use:  Adhesive kit, 32244164

When applied, hold the glue gun according to the nozzle angle.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 951 2335

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure.

Install handle external boot lid, refer to: OUTER TAILGATE/TRUNK LID HANDLE

Install the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

Install spoiler rear, refer to: SPOILER REAR
