Headlamp Bulb [2016-2018, 2020]: Removal

See information on component position headlights, refer to: COMPONENT POSITION HEADLIGHTS

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

The image shows an example.

On both sides.

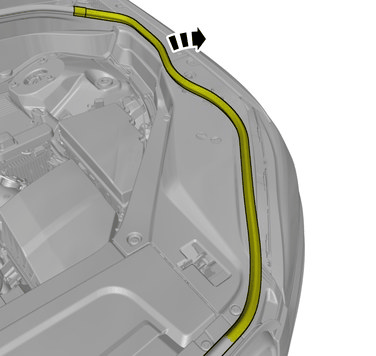

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

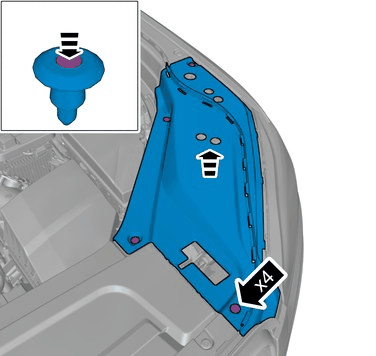

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

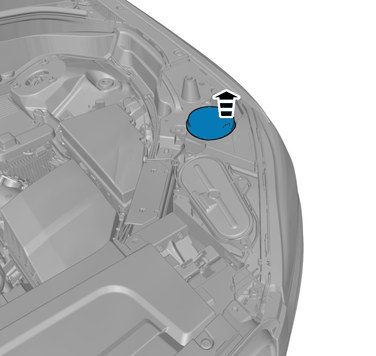

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

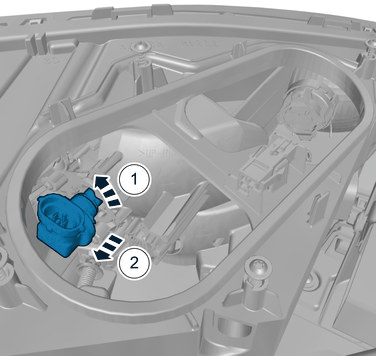

Remove the following items:

1. Disconnect the connectors.
2. Remove the fastener.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

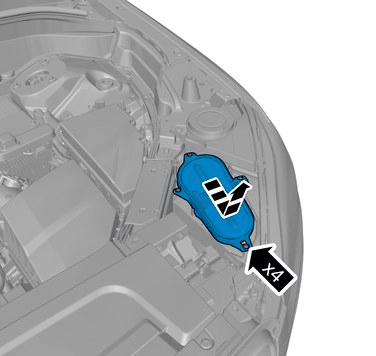

Loosen the screws.

Remove the marked part.

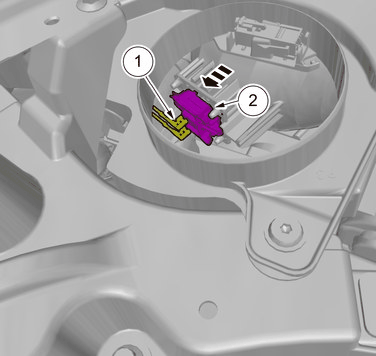

Courtesy of VOLVO CARS CORPORATION

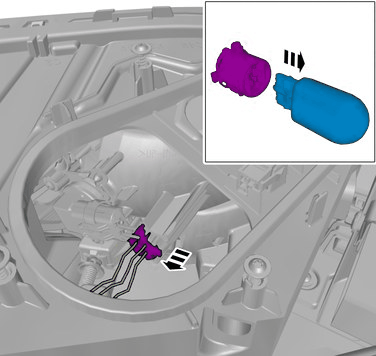

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

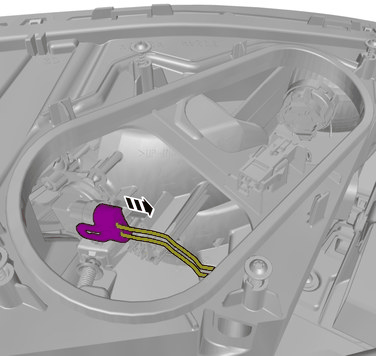

Disconnect the connector.

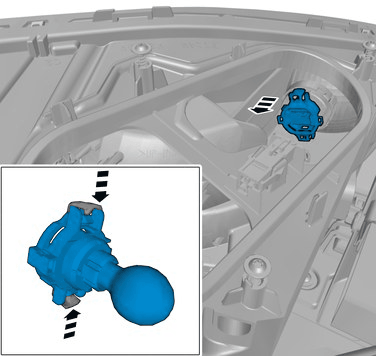

Courtesy of VOLVO CARS CORPORATION

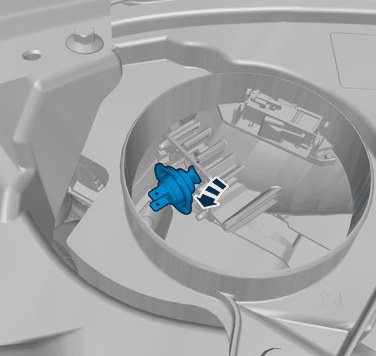

Remove the marked part.
