Safety Information

WARNING:

When working with objects on car lifts there is always a risk of a movement in the center of gravity and the lifted object becoming unstable.

WARNING:

Always follow the manufacturer's instructions for the correct servicing unit operating procedure.

WARNING:

When using the Support Lifting Points, there may be a risk of a shift in the CG (Center of Gravity) with instability of the hoisted object as a result. When in doubt, always use the Standard Lifting Points.

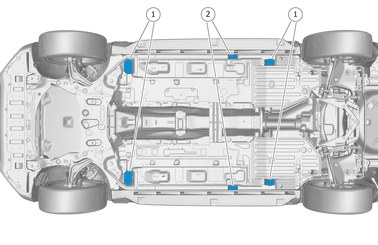

GLL1015371Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 981 4115

  1. Front and rear lifting points.
  2. Support lifting points

For additional information see, JACKING POINTS .
