Rebound Arm [2017-2020]: Installation

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

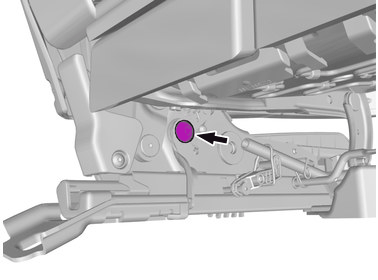

Place the component where indicated in the graphic.

Courtesy of VOLVO CARS CORPORATION

Place the component where indicated in the graphic.

Courtesy of VOLVO CARS CORPORATION

Tighten the screw.

Torque: Rebound arm to seat, 22Nm

Courtesy of VOLVO CARS CORPORATION

Place the component where indicated in the graphic.

Repeat all method steps for the other side.

Check for correct operation.
