Backrest Release Cable [2016-2020]: Removal

Remove back cushion outer rear seat, refer to: BACK CUSHION OUTER BACKSEAT

Courtesy of VOLVO CARS CORPORATION

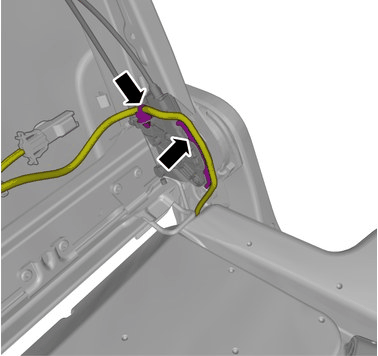

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

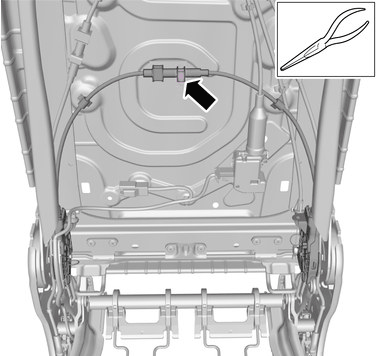

Release the lock.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

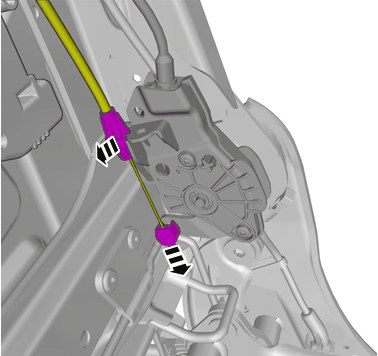

Release the lock.

Courtesy of VOLVO CARS CORPORATION

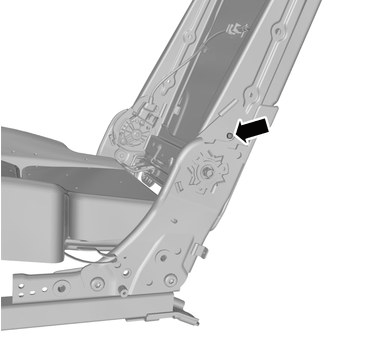

Remove the screw.

On both sides.

Courtesy of VOLVO CARS CORPORATION

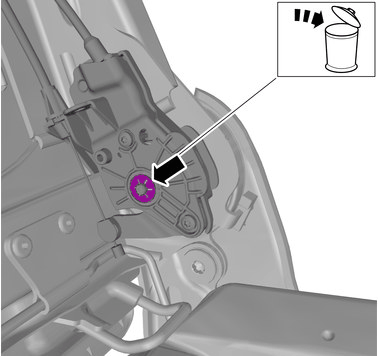

Remove the fastener.

On both sides.

Courtesy of VOLVO CARS CORPORATION

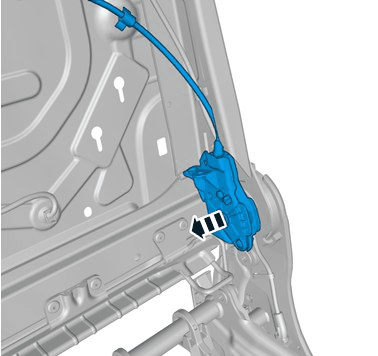

Remove the marked part.

On both sides.
