Backrest Frame Front Seat [2016-2020]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove front seat, refer to: FRONT SEAT
Remove the following items:
- Side panel front seat, refer to: SIDE PANEL FRONT SEAT
- Front seat backrest, refer to: FRONT SEAT BACKREST
- seat backrest adjusting motor, refer to: SEAT BACKREST ADJUSTING MOTOR
- Front safety belt buckle, refer to: FRONT SAFETY BELT BUCKLE
- lumbar support front seat, refer to: LUMBAR SUPPORT FRONT SEAT
Torque: M5, 5Nm
Remove the screws.
Remove the marked part.
Remove the cable harness clips.
Remove the cable harness clips.

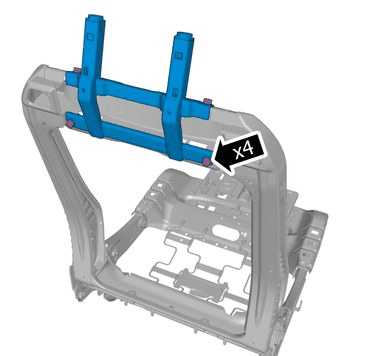

Remove the screws.
Remove the marked parts.
Torque: M8, 24Nm
Remove the screws.
On both sides.
Remove the marked part.

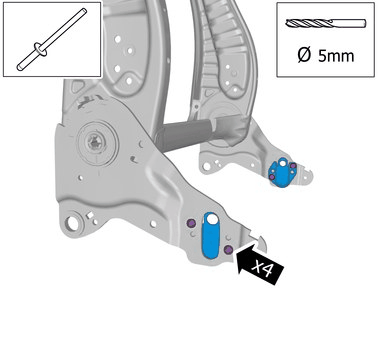

Remove blind rivet.
Remove the marked part.
