Microphone, Active Noise Control ANC, Rear [2016-2017]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

A-pillar trim panel, refer to: A-PILLAR TRIM PANEL
B-pillar trim panel, refer to: B-PILLAR TRIM PANEL
panel C-pillar, refer to: C-PILLAR TRIM PANEL
panel, D-pillar, refer to: PANEL, D-PILLAR
Sun visor, refer to: SUN VISOR
overhead console OHC, refer to: OVERHEAD CONSOLE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Loosen the marked details.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: entry handle, for bracket, 6Nm

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

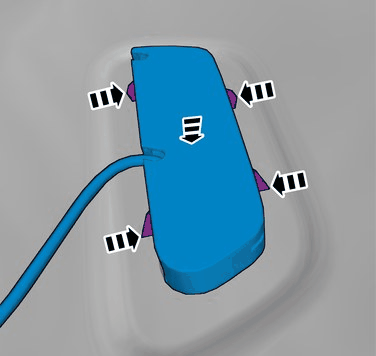

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Loosen the clip.

VEHICLES WITH GLASS ROOF PANEL

Courtesy of VOLVO CARS CORPORATION

NOTE:

Velcro strip

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

NOTE:

Velcro strip

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

HINT: This step may require the aid of another technician.

Lower to suitable height.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

NOTE:

The number of connectors may vary depending on the vehicle's equipment level.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

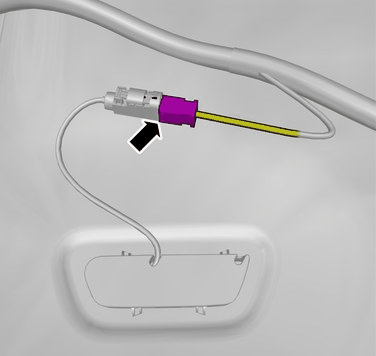

Disconnect the connector.
