Wind Screen Washer Jet [2016-2020]: Removal

CAUTION:

Make sure that the motor is in the park position.

Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

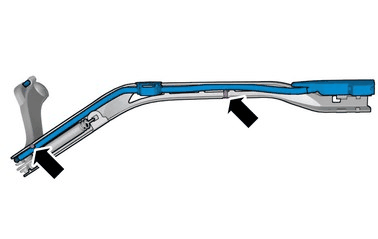

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Disconnect the connectors.

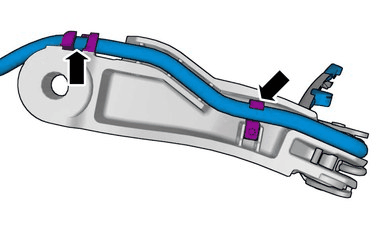

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

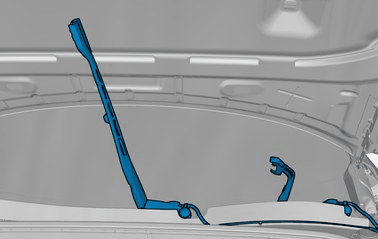

Orientation view

Courtesy of VOLVO CARS CORPORATION

CAUTION:

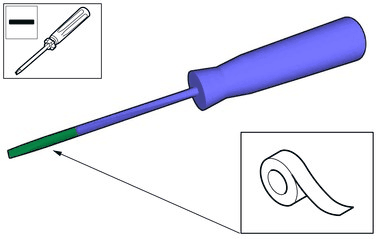

Use suitable tape to protect the wiper arm.

Courtesy of VOLVO CARS CORPORATION

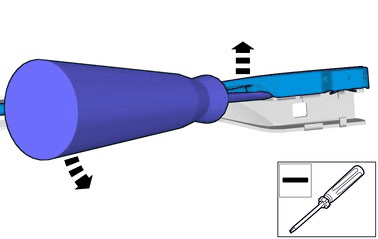

On both sides.

Courtesy of VOLVO CARS CORPORATION

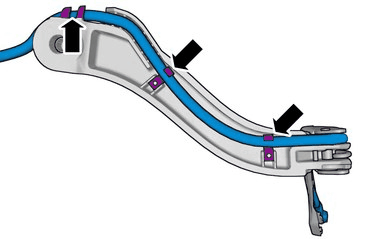

On both sides.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

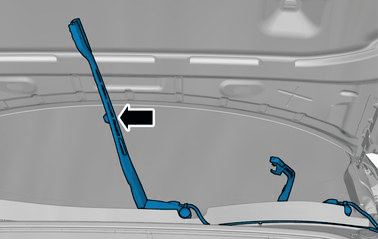

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

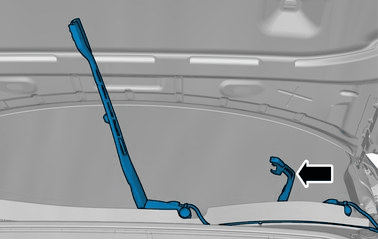

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

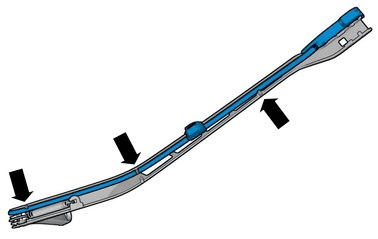

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
