Infotainment Head Unit (IHU) [2017-2020]: Removal

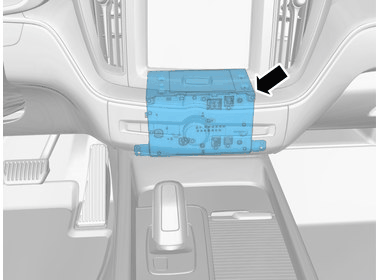

Orientation view
The following steps are only necessary when installing a new component.
Activating the menu : Diagnostics/ Components / ECUs / Infotainment Head Unit (IHU) / Diagnostic Sequences / Enabling the "Export profile to USB" menu
The following items must always be performed regardless of whether new components are installed or not.
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE
Detach floor bracket, refer to: FLOOR CONSOLE
The number of connectors, cables and cable ties may vary depending on the vehicle specification.
Loosen the clips.
Disconnect the connectors.
Remove the screws.
Remove the marked part.
The number of connectors, cables and cable ties may vary depending on the vehicle specification.
Disconnect the connectors.
