Microphone, Active Noise Control ANC, Rear [2018-2019]: Removal

Remove the following items:

• A-pillar trim panel, refer to: A-PILLAR TRIM PANEL
• B-pillar trim panel, refer to: B-PILLAR TRIM PANEL
• panel C-pillar, refer to: C-PILLAR TRIM PANEL
• panel, D-pillar, refer to: PANEL, D-PILLAR
• Sun visor, refer to: SUN VISOR
• overhead console OHC, refer to: OVERHEAD CONSOLE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

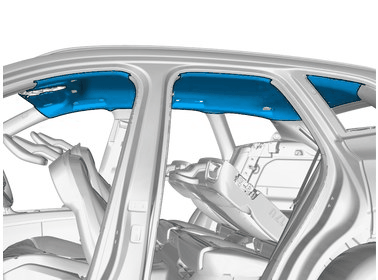

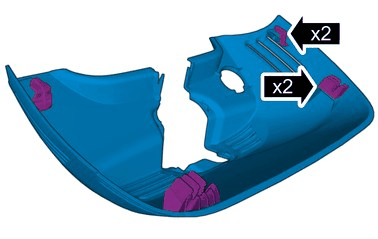

Remove the marked parts.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

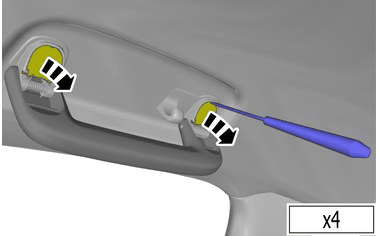

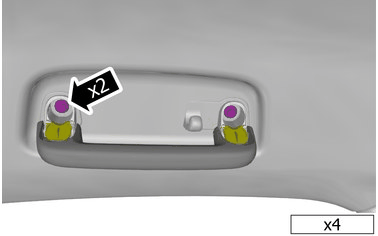

Remove the screws.

Torque:  entry handle, for bracket, 6Nm

Courtesy of VOLVO CARS CORPORATION

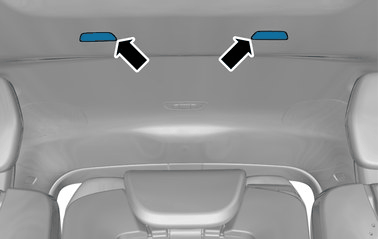

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

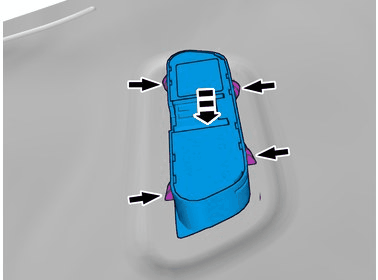

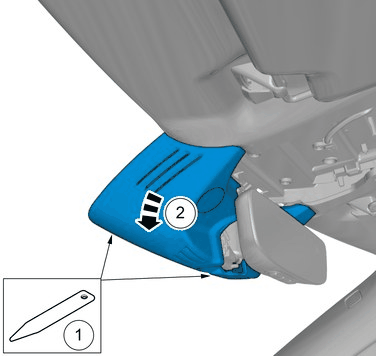

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

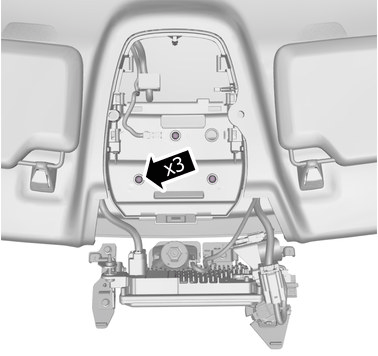

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

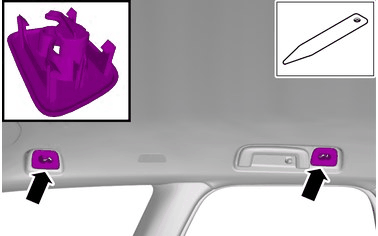

Remove the clip.

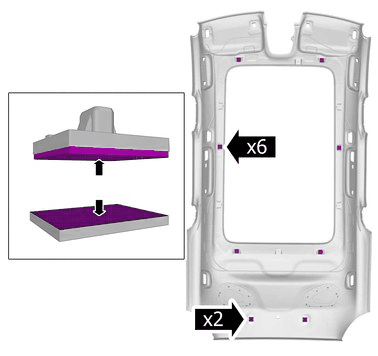

VEHICLES WITH GLASS ROOF PANEL

Courtesy of VOLVO CARS CORPORATION

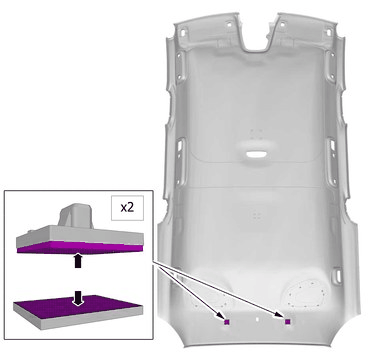

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Courtesy of VOLVO CARS CORPORATION

HINT: This step may require the aid of another technician.

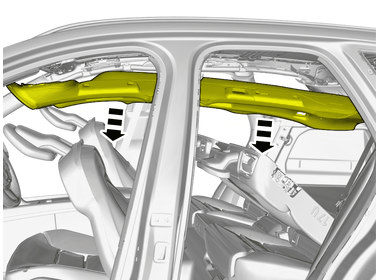

Lower to suitable height.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

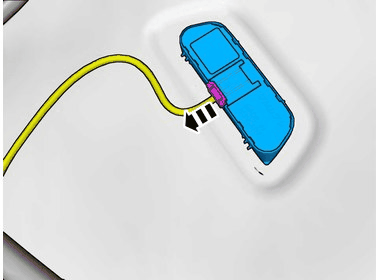

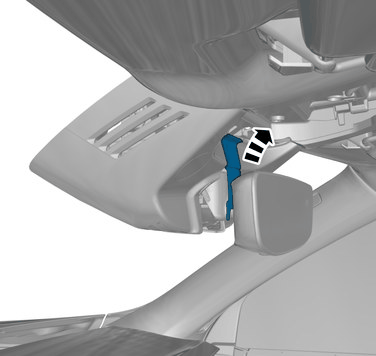

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

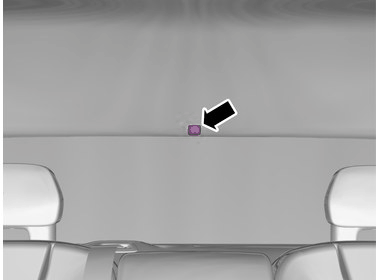

Remove the marked part.
