Extended Roof Opening Panel Cassette [2016-2020]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the headlining, refer to: HEADLINING

Courtesy of VOLVO CARS CORPORATION

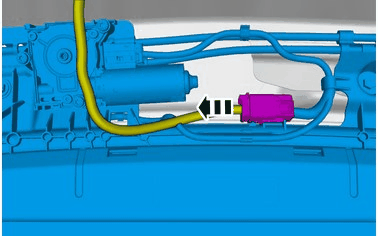

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

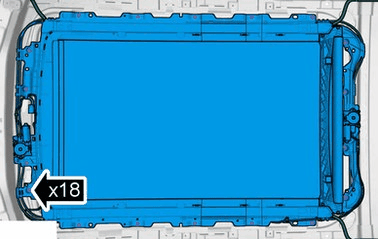

NOTE:

Install all the bolts finger tight before final tightening.

Torque: Extended roof opening panel, to Body, 6Nm
