Ignition Coil [2014-2015, B4204T10 | 2014-2018, B4204T11; B4204T12; B4204T9 | 2017-2018, B4204T43]: Removal
NOTE:
Removal steps in this procedure may contain installation details.

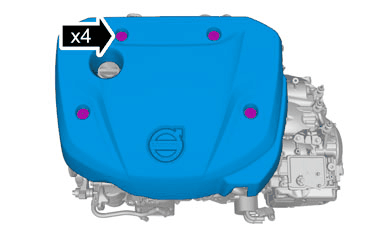

 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

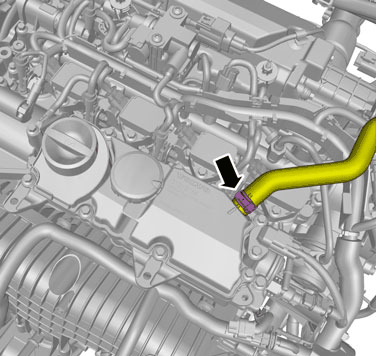

Remove the hose.
 Courtesy of VOLVO CARS CORPORATION
|

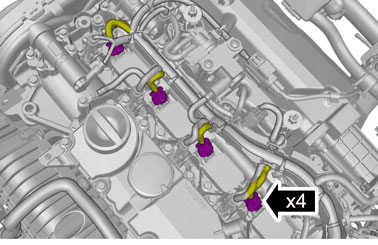

Release the connector catches.
Disconnect the connectors.
 Courtesy of VOLVO CARS CORPORATION
|

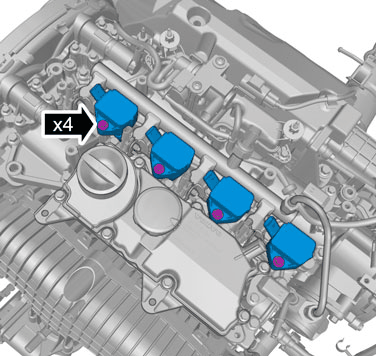

Remove the screws.
Torque:
M6, 10Nm
